CRANKCASE AND CRANKSHAFT
1
2
3
3
4
5
5
5
5
5
5
6
6
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
1
CRANKSHAFT ASSEMBLY; V270
3023056
3024055
$1 889,99 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1205258
1206287
$467,24 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
3023057
3024567
$157,49 Unit Price incl. VAT
3
ASM-ROD CONNECTING 22/45
1205051
3024567
$157,49 Unit Price incl. VAT
4
CONNECTING ROD BOLT 9MM X 1.0MM X 44MM
7520356
$41,99 Unit Price incl. VAT
5
MAIN GEARCASE; 41 MM; GREEN
3514662003
Not Available
5
MAIN BEARING; 41 MM; BLUE
3514662002
Not Available
5
MAIN BEARING; 41 MM; WHITE
3514662001
Not Available
5
MAIN BEARING; RED
3514662005
Not Available
5
MAIN BEARING; 41 MM; YELLOW
3514662004
Not Available
5
MAIN BEARING
3514662
9999999
Not Available
6
BEARING-CON ROD40MMBLUE
3514645027
Not Available
6
BEARING-CON ROD40MMRED
3514645015
Not Available
6
BEARING-CON ROD40MMYLW
3514645053
Not Available
6
BEARING-CON ROD40MMWHITE
3514645016
Not Available
7
BALL SHAFT BEARING; 38 X 41 X 17.5
3514756
$16,79 Unit Price incl. VAT
8
MAIN BEARING; CENTER; LOWER
3514803004
Not Available
8
MAIN BEARING; CENTER; LOWER; BLUE
3514803002
Not Available
8
MAIN BEARING; CENTER; LOWER; GREEN
3514803003
Not Available
9
SEAL FLANGE LUBE VITON
3610176
$57,74 Unit Price incl. VAT
10
SCREW
7519186
$10,49 Unit Price incl. VAT
11
SCREW
7519297
$7,34 Unit Price incl. VAT
12
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
13
K-CRANKCASE
2206215
2207375
$2 057,99 Unit Price incl. VAT
14
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
15
OIL DRAIN DIVERTER
5452616
$47,24 Unit Price incl. VAT
16
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
17
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
18
SCR-M10X1.25X115MM HXFL 10.9
7519141
7521267
$25,19 Unit Price incl. VAT
19
PISTON JET
3022856
$83,99 Unit Price incl. VAT
20
OIL PAN
5140221
$377,99 Unit Price incl. VAT
21
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
$6,29 Unit Price incl. VAT
22
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
23
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
24
SCREW
7519154
$13,64 Unit Price incl. VAT
25
OIL BAFFLE; STAMPED
5261851
$73,49 Unit Price incl. VAT
26
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
27
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT

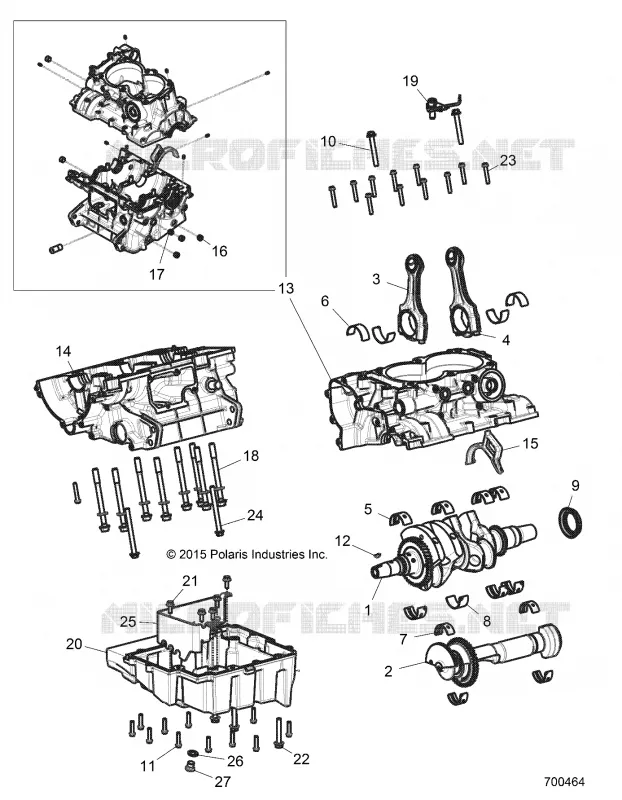

Find the detailed CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RZR XP 4 TURBO 925 2016
