VALVES AND CAMSHAFTS
5
Parts Diagram
Parts Catalog
ENGINE, VALVE COVER
by
FRONT SUSPENSION SHOCK MOUNTING
VALVES AND CAMSHAFTS
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
1
ASM-CAMSHAFT INTAKE
1204583
3024155
$220,49 Unit Price incl. VAT
2
ASM-CAMSHAFT EXHAUST
1204584
3024156
$220,49 Unit Price incl. VAT
3
INTAKE VALVE
3022414
3024729
Not Available
4
EXHAUST VALVE
3022415
3024052
Not Available
5
VALVE TAPPET; GRADED 5.175
5138477518
Not Available
5
VALVE TAPPET; GRADED; 5.250
5138477525
Not Available
5
GRADED VALVE TAPPET; 5.300
5138477530
Not Available
5
GRADED VALVE TAPPET; 5.150
5138477515
Not Available
5
GRADED VALVE TAPPET; 5.100
5138477510
Not Available
5
GRADED VALVE TAPPET; 5.450
5138477545
Not Available
5
TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET
5138477462
Not Available
5
VALVE TAPPET; GRADED 4.600
5138477460
Not Available
5
VALVE TAPPET; GRADED 4.650
5138477465
Not Available
5
VALVE TAPPET; GRADED 4.825
5138477482
Not Available
5
VALVE TAPPET; GRADED; 5.375
5138477538
Not Available
5
GRADED VALVE TAPPET; 4.450
5138477445
Not Available
5
GRADED VALVE TAPPET; 5.200
5138477520
Not Available
5
GRADED VALVE TAPPET; 4.475
5138477448
Not Available
5
VALVE TAPPET; GRADED 4.950
5138477495
Not Available
5
VALVE TAPPET 4.925MM; DELTA GREEN
5138477492
Not Available
5
VALVE TAPPET; GRADED 4.725
5138477472
Not Available
5
VALVE TAPPET; GRADED
5138477505
Not Available
5
VALVE TAPPET; GRADED; 4.575
5138477458
Not Available
5
GRADED VALVE TAPPET; 5.125
5138477512
Not Available
5
GRADED VALVE TAPPET; 4.525
5138477452
Not Available
5
GRADED VALVE TAPPET; 5.350
5138477535
Not Available
5
TAPPET-VALVE;GRADED
5138477
9999999
Not Available
5
VALVE TAPPET; GRADED; 5.275
5138477528
Not Available
5
VALVE TAPPET; GRADED; 4.5
5138477450
Not Available
5
VALVE TAPPET 4.55MM
5138477455
Not Available
5
GRADED VALVE TAPPET; 5.075
5138477508
Not Available
5
VALVE TAPPET; GRADED; 5.325
5138477532
Not Available
5
VALVE TAPPET; GRADED 4.850
5138477485
Not Available
5
VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS
5138477440
Not Available
5
GRADED VALVE TAPPET; 5.425
5138477542
Not Available
5
VALVE TAPPET; GRADED 4.875
5138477488
Not Available
5
VALVE TAPPET
5138477500
Not Available
5
VALVE TAPPET; GRADED; 5.225
5138477522
Not Available
5
VALVE TAPPET 4.975MM; SB GRN MTLC
5138477498
Not Available
5
VALVE TAPPET; GRADED 4.70; COLOR
5138477470
Not Available
5
GRADED VALVE TAPPET; 5.025
5138477502
Not Available
5
GRADED VALVE TAPPET; 5.400
5138477540
Not Available
5
VALVE TAPPET; GRADED 4.800
5138477480
Not Available
5
VALVE TAPPET; GRADED 4.675
5138477468
Not Available
5
VALVE TAPPET; GRADED 4.750; COLOR
5138477475
Not Available
5
VALVE TAPPET; GRADED 4.775
5138477478
Not Available
5
VALVE TAPPET; GRADED; 4.425
5138477442
Not Available
5
VALVE TAPPET; GRADED 4.900
5138477490
Not Available
6
HEX FLANGE SCREW; 6 MM X 1.0 MM X 10 MM
7519164
$7,34 Unit Price incl. VAT
7
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
8
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
9
BOLT-SHLDR M6X14X40
7519289
7520593
$9,44 Unit Price incl. VAT
10
SPRING VALVE
7043988
7046204
$18,89 Unit Price incl. VAT
11
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
12
CAMCHAIN GUIDE; FIXED
3022150
$26,24 Unit Price incl. VAT
13
CAM CHAIN TENSIONER GUIDE
3022151
$52,49 Unit Price incl. VAT
14
CAMCHAIN TENSIONER
3022152
$167,99 Unit Price incl. VAT
14
TENSIONER GASKET
5813449
$13,64 Unit Price incl. VAT
15
GUIDE CAMCHAIN FIXED COVER
3022153
$52,49 Unit Price incl. VAT
16
CAMSHAFT CHAIN; 144 L
3222196
$152,24 Unit Price incl. VAT
17
DRIVEN CAM SPROCKET
3222189
3225061
$68,24 Unit Price incl. VAT
18
SHOULDER BOLT; 6 MM X 12 MM X 15 MM
7519165
$25,19 Unit Price incl. VAT

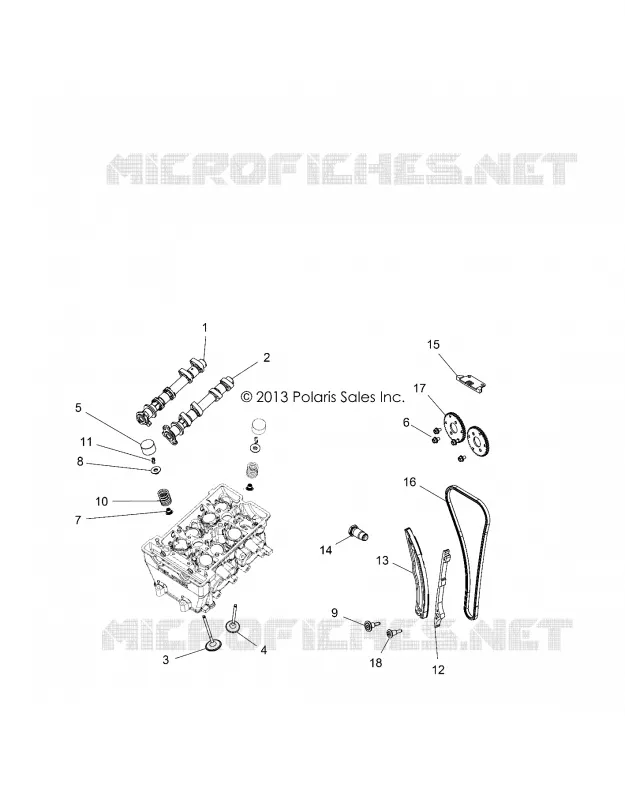

Find the detailed VALVES AND CAMSHAFTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
