1
Engine displacement
autre
2
Year
1994
3
Trim
EURO CLASSIC TOURING - E942875
4
Parts Catalog
CARBURETOR CLASSIC E942865 (49274027400044)
5
Parts Diagram
Parts Catalog
THROTTLE BODYWORK CLASSIC TOURING E942875 (49274027400043)
by
RECOIL STARTER ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400049)
CARBURETOR CLASSIC E942865 (49274027400044)
1
CARBURETOR (Incl. 2-37)
3130456
Not Available
2
SPRING THROTTLE
3130444
9999999
Not Available
3
PLATE THROTTLE
3130054
9999999
Not Available
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET (6F9-3)
3130378
9999999
Not Available
6
VALVE THROTTLE2.5
3130454
9999999
Not Available
7
JET NEEDLE P-8
3130382
Not Available
8
CAP VACUUM FIT
3130379
9999999
Not Available
9
WASHER
3130047
$9,44 Unit Price incl. VAT
10
VALVE ASMNEEDLE
3130046
9999999
Not Available
11
PIN; FLOAT
3130235
3130361
$18,89 Unit Price incl. VAT
12
ARM FLOAT
3130048
9999999
Not Available
13
CAP
3130237
$8,39 Unit Price incl. VAT
14
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
15
O-RING
3130239
9999999
Not Available
16
FITTING SEDIMENT
5020476
9999999
Not Available
17
SCREW
3130056
9999999
Not Available
18
FLOAT CHAMBER GASKET
3130236
$20,99 Unit Price incl. VAT
19
SUBSTITUTED BY 3130133
3130482
$15,74 Unit Price incl. VAT
20
RING CARB
3130232
9999999
Not Available
21
PLATE
3130243
9999999
Not Available
22
JET PILOT #40(10)
3130067
9999999
Not Available
23
SCREW THROTTLE STOP
3130009
9999999
Not Available
24
SPRING
3130010
$18,89 Unit Price incl. VAT
25
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
26
SPRING AIR ADJUST
3130012
9999999
Not Available
27
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
28
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
29
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT

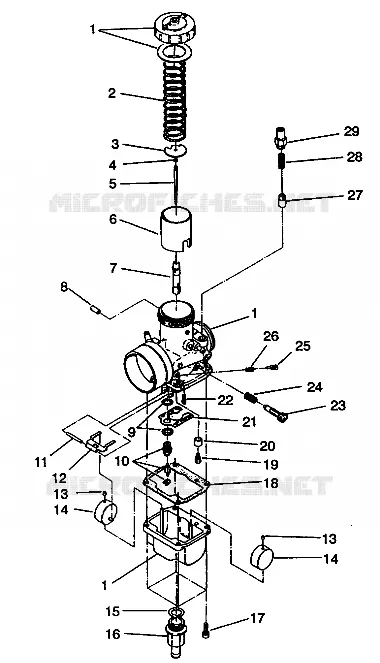

Find the detailed CARBURETOR CLASSIC E942865 (49274027400044) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
