1
Engine displacement
autre
2
Year
1993
3
Trim
LITE DELUXE - 0933431
4
Parts Catalog
CHAINCASE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297014A)
5
Parts Diagram
Parts Catalog
BRAKE LIGHT/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297013A)
by
DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297015A)
CHAINCASE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297014A)
1
JACKSHAFT ASM. (Incl. 17) (Deluxe)
1332146067
Not Available
1
SHAFT ASM; INPUT
1332134067
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
CHAINCASE
5130795
Not Available
4
BEARING CHAINCASE #6205
3514306
9999999
Not Available
5
NUT
7542404
$3,14 Unit Price incl. VAT
6
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
7
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
8
SPACER SPROCKET
5010270
9999999
Not Available
9
SPROCKET 15 T
3221031
9999999
Not Available
9
SPROCKET 16 T
3221032
9999999
Not Available
10
TIGHTENER ASM.
1332078
9999999
Not Available
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
13
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
14
PLUG(10) 1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
15
COVER
5130817
9999999
Not Available
16
SCREW
7512242
$4,19 Unit Price incl. VAT
17
SCREW
7511909
9999999
Not Available
18
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
19
NUT-WELL
7541918
9999999
Not Available
20
CHAINCASE GASKET
5410277
9999999
Not Available
21
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
22
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
23
SPROCKET 39 T11W
3222034
9999999
Not Available
23
SPROCKET-41T 11W
3222037
9999999
Not Available
24
CHAIN 64 PITCH 11W
3224023
9999999
Not Available
24
CHAIN 66 PITCH
3224024
9999999
Not Available
25
PLUG; MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
26
CAP STUD COVER
5020569
9999999
Not Available
27
WASHER
7555864
$4,19 Unit Price incl. VAT

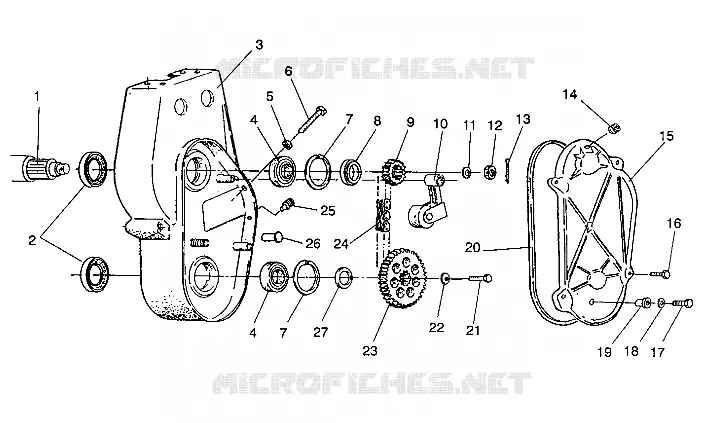

Find the detailed CHAINCASE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297014A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
