TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
15
15
15
16
16
16
16
17
17
17
18
18
18
19
19
19
20
20
20
20
21
22
22
22
22
22
22
22
22
22
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
CLOSE-OFF ASM REAR BLK. (SKS)(Incl. Rivets)
1012232067
Not Available
2
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
3
RIVET(10) STEEL
7661641
9999999
Not Available
4
RIVET
7621418
$2,09 Unit Price incl. VAT
5
RETAINER FLAP
5222659067
Not Available
6
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
RIVET
7621472
$2,09 Unit Price incl. VAT
8
SKIRT LH SNOW BLK.
5431627070
Not Available
8
SKIRT RH SNOW BLK.
5431645070
Not Available
9
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
10
RIVET (10)
7621336
$3,14 Unit Price incl. VAT
11
BUMPER;R.SKS EFI
5224349067
Not Available
12
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
14
BOLT
7512240
9999999
Not Available
15
FOOTREST LH R BLK.
5220893067
Not Available
15
FOOTREST RH R BLK.
5220894067
Not Available
16
PAD LH FOOT SAFETY
5830007
9999999
Not Available
16
PAD RH FOOT SAFETY
5830008
9999999
Not Available
17
RIVET
7661637
$2,09 Unit Price incl. VAT
18
RIVET (50)
7661829
9999999
Not Available
19
RIVET (10)
7661825
9999999
Not Available
20
BRKT RH.REAR SUSP.
1011906067
Not Available
20
BRKT LH.REAR SUSP
1011905067
Not Available
21
EXTRUSION CLUTCHGUARD
5521238
9999999
Not Available
22
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
23
FOOTREST ASM RH
1011862
Not Available
23
FOOTREST ASM LH
1011861
Not Available
24
RIVET(10)
7621222
9999999
Not Available
25
SNAP-MALE
7080227
9999999
Not Available
26
BRKT F.SUSP. BLK.
5211323067
Not Available
27
DECAL TOP TUNNEL STRIP
7073978
Not Available
28
BRACE;TUNNEL REINF.
5240265
5240242
Not Available
29
TUNNEL ASM;ROTATED
1012274
9999999
Not Available
30
WELD-BULKHEAD
1012275
9999999
Not Available
31
GUARD
5223789
Not Available
32
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
33
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
34
BUSHING OPEN/CLOSE
7080399
9999999
Not Available
35
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
36
SCREW
7512307
$7,34 Unit Price incl. VAT
37
SUPPORTMUFFLERBLK.
1011831067
Not Available
38
RIVET
7621452
9999999
Not Available
39
BRKT; TOOL BOX
5220973
9999999
Not Available
40
MOUNT;WEAR STRIP
5131009
9999999
Not Available

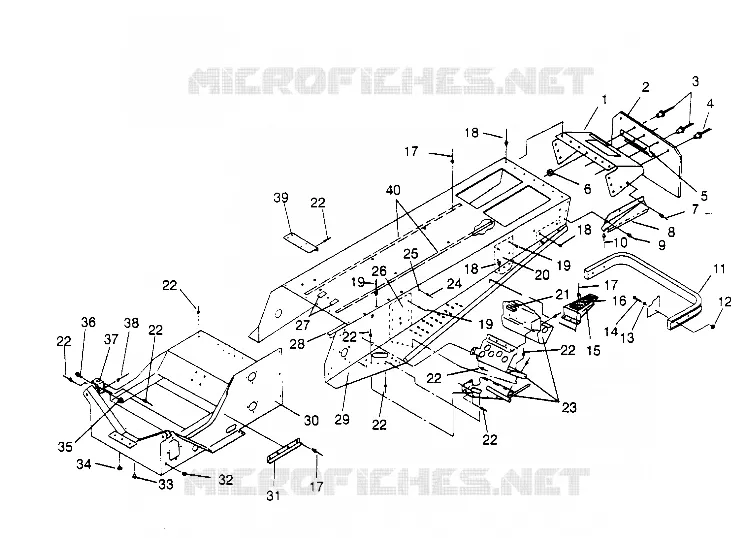

Find the detailed TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

TOURING autre 1995
