1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
EXHAUST SYSTEM 600 XCR 0951676 (4929132913C003)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 600 XCR 0951676 (4929132913C002)
by
OIL TANK/AIR BOX 600 XCR 0951676 (4929132913C004)
EXHAUST SYSTEM 600 XCR 0951676 (4929132913C003)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
16
16
1
RESONATOR BLK.
1260583029
Not Available
2
SPRING
7042029
$10,49 Unit Price incl. VAT
3
OUTLET STINGER
1260593067
Not Available
4
RIVET
7621431
$2,09 Unit Price incl. VAT
5
VIBRATION DAMPENER
5410467
9999999
Not Available
6
WASHER THRUST
7555788
9999999
Not Available
7
BRKTREAR MUFFLER
5222153067
Not Available
8
POP RIVET
7621402
$2,09 Unit Price incl. VAT
9
GASKET EXH
3084439
9999999
Not Available
10
MANIFOLD BLK.
1260649029
Not Available
11
LOCK WASHER
3080530
9999999
Not Available
12
NUT
3080285
9999999
Not Available
13
RIVET
7661637
$2,09 Unit Price incl. VAT
14
SUPPORTMUFFLERBLK.
1011831067
Not Available
15
MUFFLER BLK.
1260650029
Not Available
16
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT

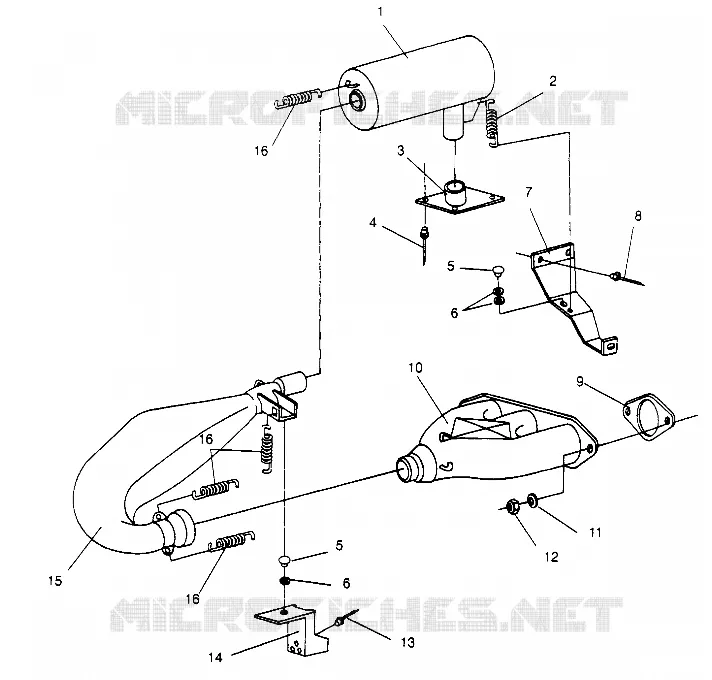

Find the detailed EXHAUST SYSTEM 600 XCR 0951676 (4929132913C003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
