1
CARRIER WHEL
1543021
9999999
Not Available
2
WHEEL INSERTS
5430723
9999999
Not Available
3
BEARING
3514303
$20,99 Unit Price incl. VAT
4
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
5
OUTER SPACER
5333019067
Not Available
6
WASHER
7555726
$3,14 Unit Price incl. VAT
7
SHAFT MTG.
5020836
9999999
Not Available
8
SPACER BLK IN.CARRIER
5333020067
Not Available
9
BOLT 3/8-16X1.25(10)
7517731
$2,09 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
11
SCREW
7517435
$22,56 Unit Price incl. VAT
12
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
13
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
14
ASM-WHEEL IDLER SCRLLD RIG BLU
1594083246
Not Available
15
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
16
BUSHING
7555918
$3,14 Unit Price incl. VAT
17
PLAIN WHEEL ASSEMBLY
1594087
9999999
Not Available
18
SHAFT IDLER
5020879
9999999
Not Available
19
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
20
RIVET
7621501
$4,19 Unit Price incl. VAT
21
SCREW
7512225
9999999
Not Available
22
WHITE SLIDER
5521452
$73,49 Unit Price incl. VAT
22
RAIL ASM;SWINGARM;RIVETED
1541133
9999999
Not Available
23
TUBESPACER CTR OUTSIDE
5330171067
Not Available
24
BUSHING
7556301
$6,29 Unit Price incl. VAT
25
ASM-WHEEL IDLER SCRL6675MD BLU
1590276246
Not Available
26
RIVET (50)
7621508
9999999
Not Available
27
SCREW
7517247
9999999
Not Available
28
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
29
SPACER
5630399
$20,99 Unit Price incl. VAT
30
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
31
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
32
ASM-WHEEL SCROLLED BOGIE R BLU
1594082246
Not Available
33
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
34
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
35
BOLT
7512538
9999999
Not Available
36
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
37
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
38
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
39
BEARING
3514012
3515142
$34,64 Unit Price incl. VAT
40
BOLT
7512404
$7,34 Unit Price incl. VAT
41
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
42
RIVET
7621476
$2,09 Unit Price incl. VAT
43
REINF.; BUMPER
5222629
9999999
Not Available
44
CLIP; TRACK(CAMOPLAST);(10)
5222839
5251273
$18,89 Unit Price incl. VAT
44
TRACK-156 X 20 X 1 SHOCKWAV
5411682
9999999
Not Available
44
CLIP GUIDE(10)
5222840
5251274
$13,64 Unit Price incl. VAT
45
SCREW
7512227
$6,29 Unit Price incl. VAT
46
WHITE SLIDER
5521452
$73,49 Unit Price incl. VAT
46
RAIL ASSEMBLY; LEFT
1540751
9999999
Not Available
47
COVER-RAIL TIP
5430627
9999999
Not Available
48
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
49
PIVOT SHAFT; .750 X 13.235
5132239
$115,49 Unit Price incl. VAT
50
WASHER
7555823
$7,34 Unit Price incl. VAT
51
WHITE SLIDER
5521452
$73,49 Unit Price incl. VAT
51
RAIL ASSEMBLY; RIGHT
1540752
9999999
Not Available
52
SHAFT SPANNER
5020720
9999999
Not Available
53
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
54
BUMPER; RAIL
5810554
9999999
Not Available
55
SPACER R.SHOCK
5333138
$54,59 Unit Price incl. VAT
56
SHAFT REAR SHOCK
5020651
9999999
Not Available
57
BOLT
7512659
9999999
Not Available
58
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
59
WASHER
7555804
$7,34 Unit Price incl. VAT
60
SPACER
5332786
$13,64 Unit Price incl. VAT
61
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
62
SPRING R.EXT BLK.
7041231067
Not Available
63
SHAFT IDLER
5020726
9999999
Not Available
64
TUBE CTR.IDLER BLK.
5333014067
Not Available
65
SHAFT PIVOT ARM
5020725
9999999
Not Available
66
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
67
NUT
7542404
$3,14 Unit Price incl. VAT
68
SPACER IDLER
5333523
9999999
Not Available

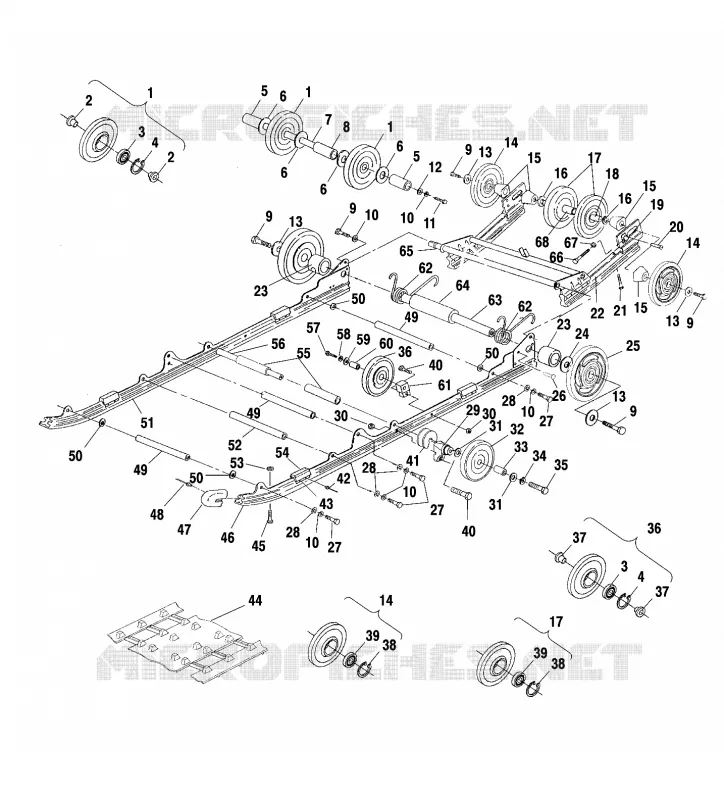

Find the detailed SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
