BRAKES, REAR BRAKE LINES for POLARIS SPORTSMAN 570 EPS ZUG/LOF from 2019

FRONT BRAKE BRAKE LINES

DRIVE TRAIN, FRONT PROP SHAFT

BRAKES, REAR BRAKE LINES

1

BRAKE CALIPER ASSEMBLY

1911122

Not Available

2

LINE-BRK RR 81.5 70B 45B 325 G

1912973

Not Available

3

LINE-BRK RR 81 70B 70B 225 G

1912974

Not Available

4

SEAL

5413212

9999999

Not Available

5

BOLT

7512457

$7,34 Unit Price incl. VAT

6

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

7

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

8

CLIP-RETAINING DUAL .250 LINE

7670126

$9,44 Unit Price incl. VAT

9

SCREW 10-24X5/8 (10)

7517756

$2,09 Unit Price incl. VAT

10

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

11

SCREW

7512024

$9,44 Unit Price incl. VAT

12

CLIP-HALF-Y

7081940

$7,34 Unit Price incl. VAT

13

CLIP SNAP-IN

7080756

$9,44 Unit Price incl. VAT

14

LINE-BRK FTDB 50 45B 45B 315

1912206

9999999

Not Available

15

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

15

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

16

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

17

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

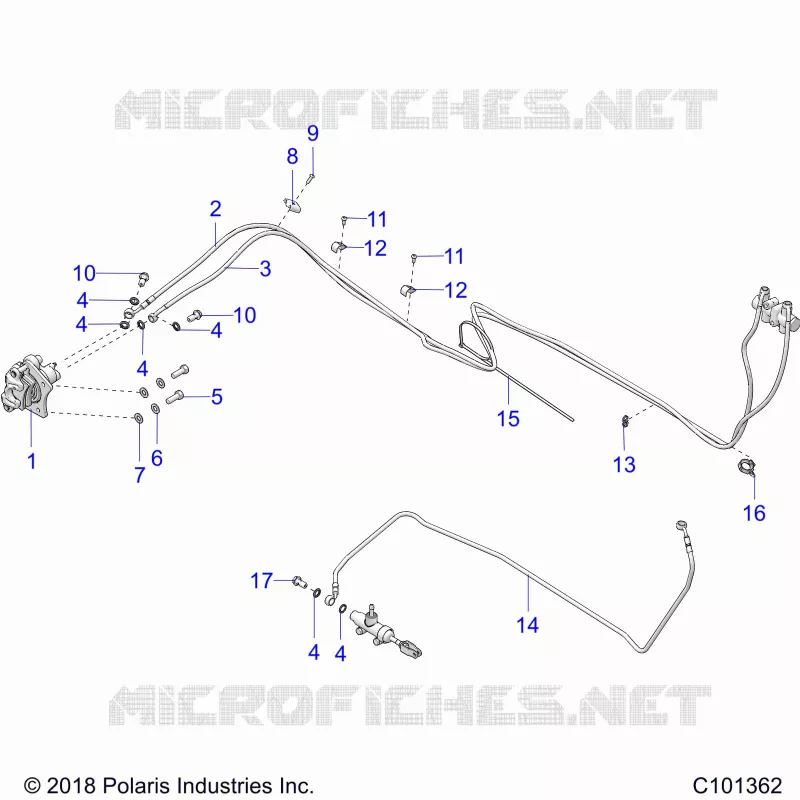

Find the detailed BRAKES, REAR BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
