CHASSIS, CAB for POLARIS RANGER 1000 DIESEL CREW from 2018

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

DRIVE TRAIN, GEAR SELECTOR

CHASSIS, CAB

1

CAB FRAME WELD; REAR; MATTE BLACK

1021852458

Not Available

2

HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM

7519363

7528444

$4,19 Unit Price incl. VAT

3

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

4

CAB FRAME WELD; FRONT; LEFT; MATTE BLACK

1022356458

Not Available

5

CAM FRAME WELD; FRONT; LEFT; MATTE BLACK

1022357458

Not Available

6

CAB FRAME WELD; REAR; LEFT; MATTE BLACK

1019526458

Not Available

7

CAB FRAME WELD; REAR; RIGHT; MATTE BLACK

1019527458

Not Available

8

SOCKET HEAD SCREW 10 MM X 1.5 MM X 35 MM

7519959

$3,14 Unit Price incl. VAT

9

NYLOC NUT; 10 MM X 1.5 MM

7547268

$2,09 Unit Price incl. VAT

10

BOLSTER WELD; RIGHT; MATTE BLACK

1022617458

Not Available

10

BOLSTER WELD; LEFT; MATTE BLACK

1022616458

Not Available

11

BOLSTER WELD; FRONT; LEFT; MATTE BLACK

1022773458

Not Available

11

BOLSTER WELD; FRONT; RIGHT

1022774458

Not Available

12

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

13

BOLT

7519650

$7,34 Unit Price incl. VAT

14

CAB FRAME WELD; CENTER; MATTE BLACK

1021166458

Not Available

15

GLOSS BLACK HEADREST

5439110070

Not Available

16

WINDSHIELD MOUNT PLATE KIT; UPPER; CREW

2207932

$335,99 Unit Price incl. VAT

17

HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM

7518460

$3,14 Unit Price incl. VAT

18

FENDER PLUG; REAR

7671178

9999999

Not Available

19

ROPS (ROPS) GRAB HANDLE GLOSS BLK

5450844070

Not Available

20

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

21

WASHER

7555923

$4,19 Unit Price incl. VAT

22

RIVET

7621460

$2,09 Unit Price incl. VAT

23

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

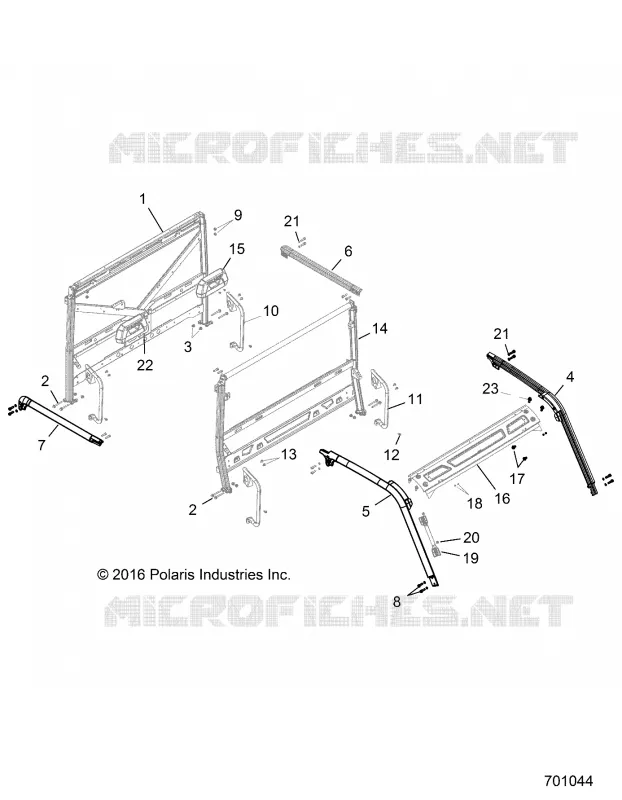

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
