REAR SUSPENSION for POLARIS 700 CLEANFIRE DRAGON from 2007

REAR SUSPENSION

1

CLIP; TRACK(CAMOPLAST);(10)

5222839

5251273

$18,89 Unit Price incl. VAT

1

TRACK 121" X 15" X 1.25" RIPSAW

2875512

2839968

$991,20 Unit Price incl. VAT

1

CLIP GUIDE(10)

5222840

5251274

$13,64 Unit Price incl. VAT

2

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

3

SCREW

7515417

9999999

Not Available

4

H-BRACKET BLK

1542129067

Not Available

5

SLEEVE .385 X .560 X 1.72

5333906

$27,29 Unit Price incl. VAT

6

BUSHING

5134600

9999999

Not Available

6

SHOCK PIVOT;BLK

1542059067

Not Available

7

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

8

BUSHING

7555918

$3,14 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

ILDER SHAFT

5020744

9999999

Not Available

11

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

12

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

13

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

13

ASSEMBLED WHEEL; GLOSS BLACK

1590388070

Not Available

13

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

14

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

15

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

16

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

17

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

18

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

19

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

20

SHAFT .795 X 8.665

5134517

$52,49 Unit Price incl. VAT

21

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

22

SHAFT

5333404

$47,24 Unit Price incl. VAT

23

REAR PIVOT ARM;4.00;BLK

1541928067

Not Available

24

CLAMP-RESERVIOR

5132832

9999999

Not Available

25

NUT NYLOK

7542344

$7,34 Unit Price incl. VAT

26

BOLT

7512329

$7,34 Unit Price incl. VAT

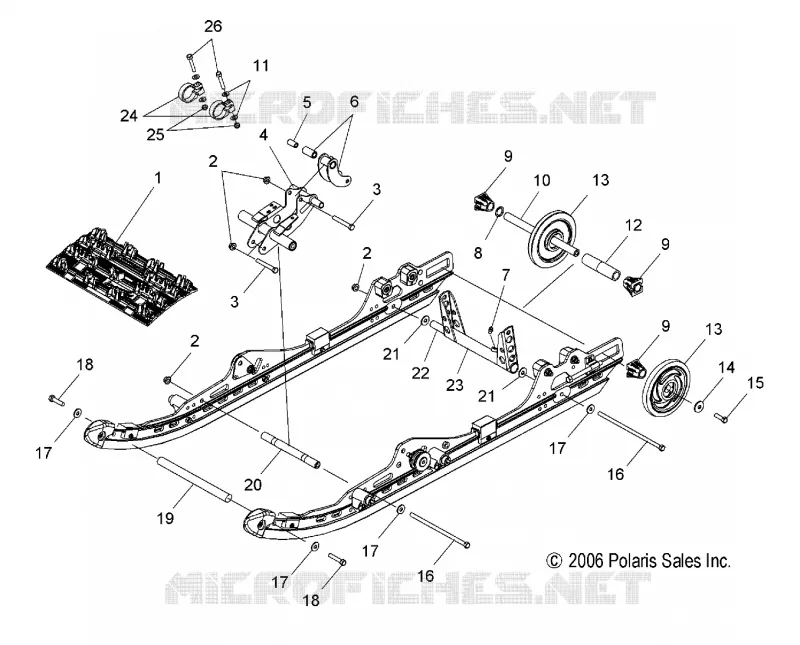

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
