DRIVEN CLUTCH 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEA (4938393839C009) for POLARIS 500 RMK - 0972964 from 1997

DRIVEN CLUTCH 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEA (4938393839C009)

1

SCREW

7512048

9999999

Not Available

2

PLATE

5210749

9999999

Not Available

3

RETAINING RING

7714804

9999999

Not Available

4

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

5

RAMP DRIVEN 36 DEGREE

5130895

9999999

Not Available

6

KEY SQUARE

7721103

9999999

Not Available

7

CLUTCH SPRING; RED

7041198

$104,99 Unit Price incl. VAT

8

DRIVEN BUSHING; LARGE

3569803

9999999

Not Available

9

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

9

WASHER 1.5 X 2.0 X .020

7555898

$2,09 Unit Price incl. VAT

10

WASHER-1.50X3.00X.075 FL-Y

7555865

9999999

Not Available

11

PIN-ADJUSTABLE DRIVEN

5020653

$52,49 Unit Price incl. VAT

12

CAM DRIVEN ADJUSTABLE

5222878

9999999

Not Available

13

SCREW

7515133

$7,34 Unit Price incl. VAT

14

CAP DRIVEN (600 600 SE)

5230101

Not Available

15

RAMP BUTTON

5430466

$12,59 Unit Price incl. VAT

16

CLUTCH 36DEG.ADJ DRIVEN

1322155

9999999

Not Available

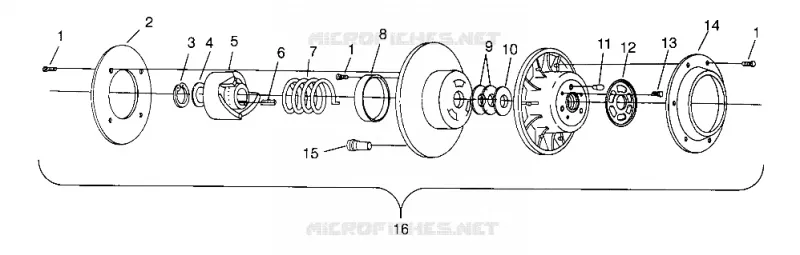

Find the detailed DRIVEN CLUTCH 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEA (4938393839C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
