1
Engine displacement
900
2
Year
2014
3
Trim
RZR 4 900 INTL - Z14XT9EFX
4
Parts Catalog
BRAKES, PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT MOUNTING AND BELTS
by
REAR BRAKE CALIPER
BRAKES, PEDAL AND MASTER CYLINDER
1
1
2
3
4
5
6
7
8
9
1
PEDAL BUSHING PIVOT
5439274
$24,14 Unit Price incl. VAT
2
WELD-BRAKE PEDAL;MATTEBLK
1015481458
Not Available
3
E-RING
7710901
$15,74 Unit Price incl. VAT
4
CLIP PIN; 14 MM
7661140
$2,09 Unit Price incl. VAT
5
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
6
TANDEM MASTER CYLINDER ASSEMBLY
1911982
$246,74 Unit Price incl. VAT
7
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
8
HEX HEAD SCREW; 8 MM X 1.25 MM X 55 MM
7519781
$9,44 Unit Price incl. VAT
9
SHIELD-MASTER CYL
5251507
$52,49 Unit Price incl. VAT

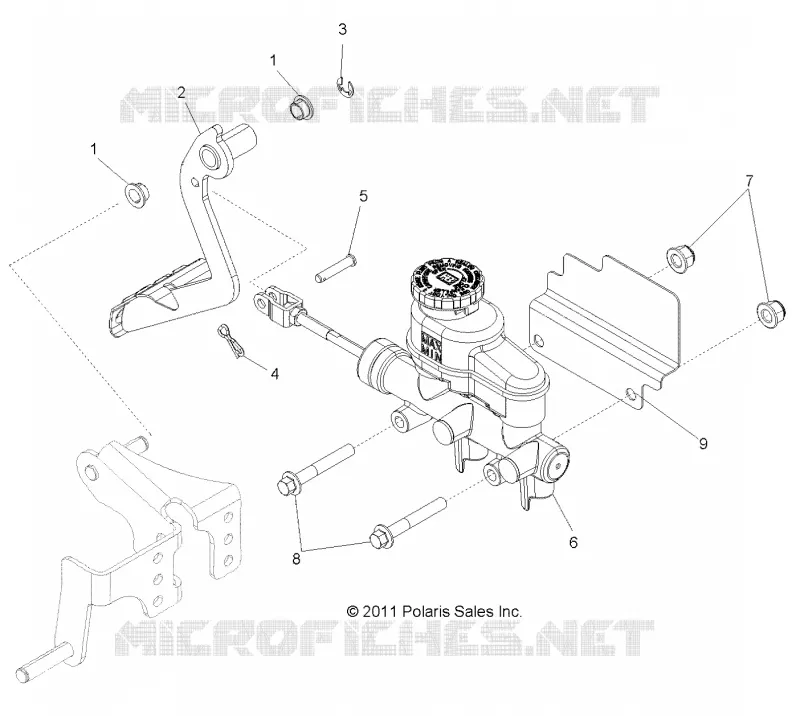

Find the detailed BRAKES, PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
