1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT EDGE
4
Parts Catalog
BLOWER HOUSING RECOIL STARTER
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT
by
CARBURETOR
BLOWER HOUSING RECOIL STARTER
1
2
3
4
5
6
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
1
ASM. BAFFLE-1 CYLINDER
3086991
3023400
$161,69 Unit Price incl. VAT
2
DECAL- POLARIS ENGINE SHROUD
7079511
9999999
Not Available
3
FLANGE BOLT
3084566
7518141
$8,39 Unit Price incl. VAT
4
DECAL-"550"ENGINE SHROUD
7079510
9999999
Not Available
5
BOLT FLANGE(10)
3085693
7519145
$7,34 Unit Price incl. VAT
6
CAP CYLINDER BAFFLE
3085690
5416455
$13,64 Unit Price incl. VAT
7
BOLT FLANGE
3085694
9999999
Not Available
8
CYLINDER BAFFLE #2
3085691
3023401
$121,79 Unit Price incl. VAT
9
BOLT AND WASHER ASSEMBLY
3083550
7520782
$15,74 Unit Price incl. VAT
10
STARTER CASE COMPL.
3087180
9999999
Not Available
10
RECOIL STARTER ASSEMBLY
3087206
9999999
Not Available
10
RECOIL STARTER
3087179
9999999
Not Available
11
PLUG RUBBER
3086792
9999999
Not Available
12
ASM-BOLT&WASHER(10)
3082030
7520783
$7,34 Unit Price incl. VAT
13
SPIRAL SPRING
3083376
3023393
$278,24 Unit Price incl. VAT
14
REEL ASSEMBLY
3083377
$104,99 Unit Price incl. VAT
15
RETURN SPRING
3083463
9999999
Not Available
16
RATCHET
3087207
9999999
Not Available
16
RATCHET
3083378
9999999
Not Available
17
FRICTION SPRING
3083379
9999999
Not Available
18
FRICTION PLATE
3083464
9999999
Not Available
19
NUT FLANGE(10)
3083381
9999999
Not Available
20
PULLEY STARTER
3087181
5141617
$73,49 Unit Price incl. VAT
21
BLOWER HOUSING
3087020
3023514
$346,49 Unit Price incl. VAT
22
STRAIGHT PIN
3084857
9999999
Not Available
23
BAND; WIRE
3084823
9999999
Not Available
24
BOLT&WASHER ASM.
3084225
7520778
$6,29 Unit Price incl. VAT
25
BOLT&WASHER ASM.(10)
3085688
7520784
$4,19 Unit Price incl. VAT
26
ROPE STARTER [No Longer Available]
3085723
Not Available

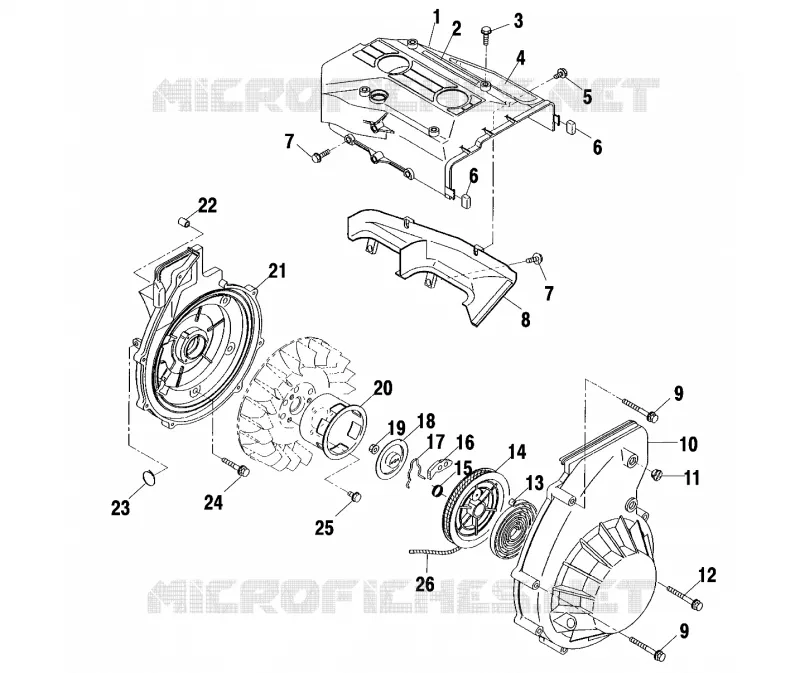

Find the detailed BLOWER HOUSING RECOIL STARTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
