FRONT FRONT WISHBONES for POLARIS 600 IQ SHIFT from 2009

FRONT FRONT WISHBONES

1

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

2

SCR-3/8-16X3.25 FLG HX GR8-Y

7518384

$6,29 Unit Price incl. VAT

3

PIVOT SHAFT

5133860

$18,89 Unit Price incl. VAT

4

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

5

PIVOT BUSHING

5434932

$11,54 Unit Price incl. VAT

6

CONTROL ARM; LOWER; LEFT SIDE; GS BLK

2203021067

Not Available

6

CONTROL ARM; LOWER; RIGHT; GS BLK

2203022067

Not Available

7

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

SCR-3/8-24X3.00 HXCP GR8-Y

7518478

$9,44 Unit Price incl. VAT

10

SPHERICAL BEARING KIT; LOWER

2203107

$74,54 Unit Price incl. VAT

11

NUT-3/8-24 HEX LOC;GR8

7547344

$1,56 Unit Price incl. VAT

12

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

13

SWAY BAR SLIDE; 9/16

5435522

9999999

Not Available

14

SCREW-#10-24X1.62 TRX/PN MC-Y

7518708

$6,29 Unit Price incl. VAT

15

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

16

SKI PIVOT BUSHING

5133983

$20,99 Unit Price incl. VAT

17

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

18

SPINDLE ASSEMBLY RIGHT

1823249

9999999

Not Available

18

SPINDLE ASSEMBLY LEFT

1823248

9999999

Not Available

19

ROD END; 1/2; 30 DEG

7061145

$99,74 Unit Price incl. VAT

20

SCR-3/8-16X2.25 SOCHD SP-Y

7518428

$9,44 Unit Price incl. VAT

21

NUT

7547104

$2,09 Unit Price incl. VAT

22

CONTROL ARM KIT; UPPER; LEFT

2203019067

Not Available

22

CONTROL ARM KIT; UPPER; RIGHT; GS BLK

2203020067

Not Available

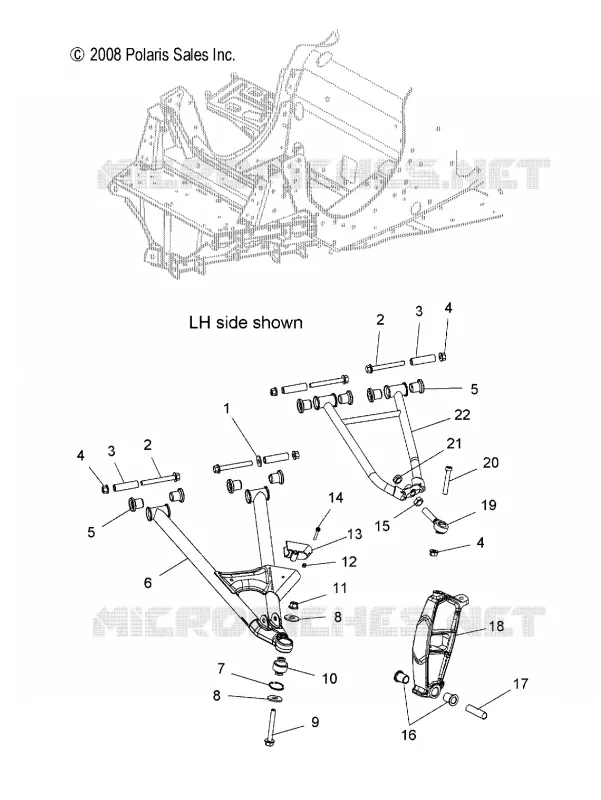

Find the detailed FRONT FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
