1
Engine displacement
500
2
Year
1997
3
Trim
EURO 500 INDY - E972764
4
Parts Catalog
REAR TORQUE ARM 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 0972964 (4938393839C006)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM (SKS) 500 SKS 0972564, EUROPEAN 500 SKS E972564 (4938393839C005)
by
REAR TORQUE ARM (SKS) 500 SKS 0972564 AND EUROPEAN 500 SKS E972564 (4938393839C007)

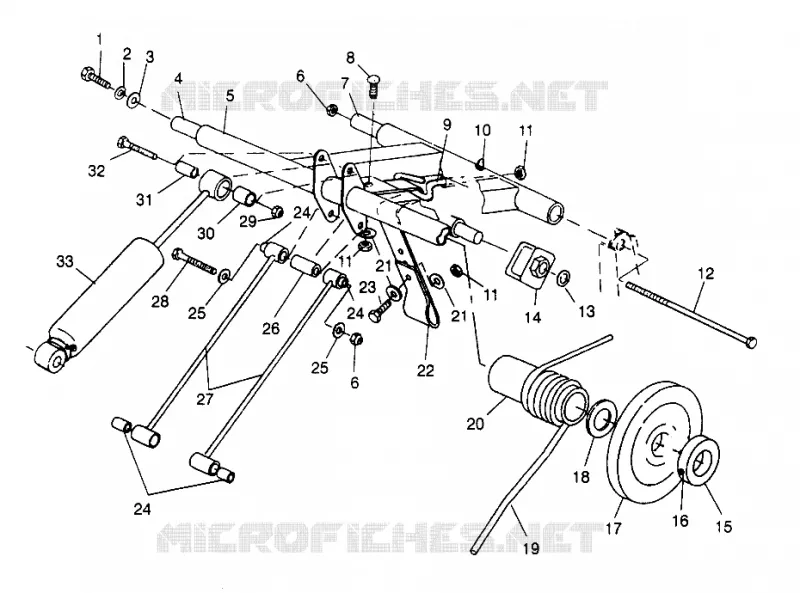

REAR TORQUE ARM 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 0972964 (4938393839C006)
1
SCREW
7517247
9999999
Not Available
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
4
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
5
ARMR.TORQUEBLK
1541024067
Not Available
6
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
7
SHAFT
5333536
9999999
Not Available
8
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
9
EYE BOLT
7010050
9999999
Not Available
10
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
11
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
12
SCREW
7517232
$36,74 Unit Price incl. VAT
13
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
14
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
15
COLLAR;BRG LOCK
5010404
9999999
Not Available
16
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
17
CARRIER WHEEL
1543023
9999999
Not Available
18
WASHER THRUST
7555787
9999999
Not Available
19
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
19
SPRING LH TORS(.406DIA)
7041463067
Not Available
19
SPRING RH TORS(.406DIA)
7041464067
Not Available
19
SPRING LH TORS(.421DIA)
7041461067
Not Available
20
TORSION SPRING SLEEVE
5431923
9999999
Not Available
21
WASHER
7555716
$3,14 Unit Price incl. VAT
22
STRAP LIMITER
5411061
9999999
Not Available
23
BOLT
7515307
$7,34 Unit Price incl. VAT
24
PIVOT TUBE BUSHING
5020561
9999999
Not Available
25
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
26
SPACER
5333420
9999999
Not Available
27
ROD SHOCK (XTRA 10)133
1541021067
Not Available
27
ROD SHOCK
1541015067
Not Available
28
BOLT
7515472
$4,19 Unit Price incl. VAT
29
NUT FLEX-LOC
7542303
9999999
Not Available
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
9999999
Not Available
32
BOLT
7512329
$7,34 Unit Price incl. VAT
33
SHOCK GAS ADJ R.TRACK
7041441
9999999
Not Available
33
SHOCKRR TRKADJX-10
7041577
9999999
Not Available

Find the detailed REAR TORQUE ARM 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 0972964 (4938393839C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
