1
Engine displacement
300
2
Year
1996
3
Trim
XPRESS 300 - W969530
4
Parts Catalog

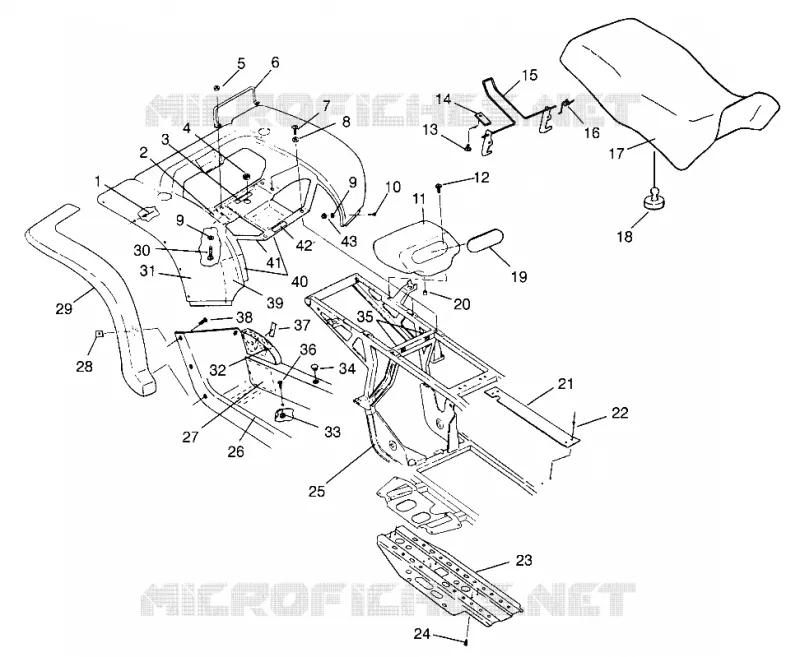

REAR CAB SEAT XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592A007)
5
Parts Diagram
Parts Catalog
CABIN XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592A006)
by
ENGINE MOUNTING (400) XPRESS 400 W969540 (4935923592A012)
REAR CAB SEAT XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592A007)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
21
22
23
24
25
25
25
25
26
26
26
26
27
28
29
29
29
29
30
31
31
31
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
21
22
23
24
25
25
25
25
26
26
26
26
27
28
29
29
29
29
30
31
31
31
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
1
RIVET
7661645
9999999
Not Available
2
FOIL REAR
5811107
9999999
Not Available
3
DECAL CARB.INFO.
7073761
Not Available
4
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
5
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
RETAINER SEAT LATCH
5224592
9999999
Not Available
7
SCREW
7515180
9999999
Not Available
8
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
9
WASHER
7555792
$9,44 Unit Price incl. VAT
10
SCREW
7512085
9999999
Not Available
11
TOOLBOX
5431786
9999999
Not Available
12
BOLT
7512246
9999999
Not Available
13
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
14
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
15
SEAT LATCH
1040387
9999999
Not Available
16
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
17
SEAT ASM; LT.GRAY
2681746143
Not Available
17
FOIL SEATBASE LG.
5811104
9999999
Not Available
17
COVER SEAT LT.GRAY
2681747143
Not Available
17
FOIL SEATBASE SM.
5811105
9999999
Not Available
18
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
19
COVER TOOLBOX
5431787
9999999
Not Available
20
CAP DRAIN (10)
5410896
9999999
Not Available
21
GUARD-CLUTCH BLK
5241403067
Not Available
22
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
23
GUARD ROCK BLK.
5240560067
Not Available
24
BOLT
7512232
$2,09 Unit Price incl. VAT
25
FRAME MAIN (300-2X4) BLK
1040487067
Not Available
25
FRAME MAIN (400 2X4) BLK
1040479067
Not Available
26
FOOTWELL RH BLK.NYLON
5432374070
Not Available
26
FOOTWELL LH NY BLK.
5432056070
Not Available
27
FOIL FOOTWELL [No Longer Available]
5811402
Not Available
28
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
29
MUDGUARD RH R.BLK.
5431797
9999999
Not Available
29
MUDGUARD LH R.BLK.
5431796
9999999
Not Available
30
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
31
CAB REAR BLUE-GRN (GEN 4) (400)
5432311215
Not Available
31
CAB;REAR;BON.BLUE;(GEN 4)
5432311157
Not Available
32
FOIL FOOTWELL SLOTTED [No Longer Available]
5811399
Not Available
33
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
34
PLUG HOLE
5411009
9999999
Not Available
35
TAB-AIRBOX MOUNT
5241418
9999999
Not Available
35
TAB-AIRBOX MOUNT (400)
5222646
Not Available
36
SCREW
7512279
$1,56 Unit Price incl. VAT
37
FOIL FOOTWELL RIB
5811401
9999999
Not Available
38
SCREW
7522026
9999999
Not Available
39
FOIL
5811111
9999999
Not Available
40
FOIL FRONT
5811106
9999999
Not Available
41
FOIL (6X1)
5811087
9999999
Not Available
42
DECAL FILTER ELEMENT [No Longer Available]
7072791
Not Available
43
NUT; LOCK
7541929
7541925
$1,56 Unit Price incl. VAT

Find the detailed REAR CAB SEAT XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
