CYLINDER 440 0942760 AND 440 SKS 0942560 (4925072507031A) for POLARIS 440 SKS - 0942560 from 1994

CYLINDER 440 0942760 AND 440 SKS 0942560 (4925072507031A)

1

FLANGE NUT

3082910

9999999

Not Available

2

HEAD CYLINDER

3084610

9999999

Not Available

3

PLUG

3084491

9999999

Not Available

4

GASKET ALUMINUM

3084492

9999999

Not Available

5

NUT

3080285

9999999

Not Available

6

LOCK WASHER

3080530

9999999

Not Available

7

GASKET EXH

3084439

9999999

Not Available

8

STUD

3084270

9999999

Not Available

9

CYLINDER

3084322

9999999

Not Available

10

FLANGE NUT

3082911

7547013

$3,14 Unit Price incl. VAT

11

GASKET CYL.NA.

3084029

9999999

Not Available

12

ASM-ADAPTER BAND

3083166

7082340

$36,74 Unit Price incl. VAT

13

SCREW; PAN HEAD

3083086

9999999

Not Available

14

MOUNT; CARBURETOR

3083306

9999999

Not Available

15

SOCKET HEAD BOLT

3081330

9999999

Not Available

16

PIPE; WATER

3083452

9999999

Not Available

17

SWITCH THERMAL(93 DEG.C.)

3083055

9999999

Not Available

18

STUD

3083360

9999999

Not Available

19

GASKETHEAD

3084611

9999999

Not Available

20

GASKET FILLER NECK

3083340

9999999

Not Available

21

NECK FILLER

3083398

9999999

Not Available

22

BOLT FLANGE

3083361

9999999

Not Available

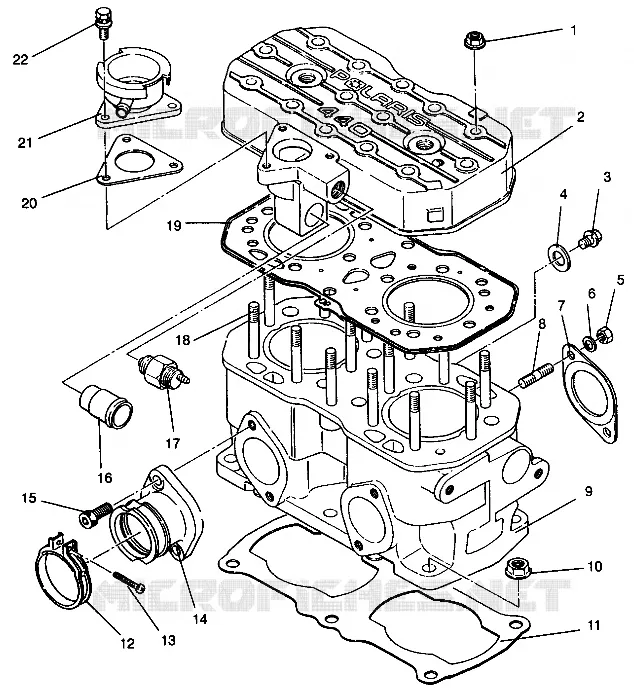

Find the detailed CYLINDER 440 0942760 AND 440 SKS 0942560 (4925072507031A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
