FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY for POLARIS 600 VOYAGER from 2014

ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR

FUEL SYSTEM, FUEL TANK ASM.

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY

1

INJECTOR ELASTOMER RUBBER BUSHING

5436287

$6,29 Unit Price incl. VAT

2

BOSCH O-RING

5412891

$2,09 Unit Price incl. VAT

3

O-RING-BOSCH EV-14 UPPER

1500198

$20,25 Unit Price incl. VAT

4

INJ HARNESS W/ LEAD 600 LE

4014439

$677,24 Unit Price incl. VAT

5

HEX FLANGE SCREW; 6 MM X 1.0 MM X 60 MM

7519244

$3,14 Unit Price incl. VAT

6

FUEL LINE RETURN ASSEMBLY; SDI RMK

2521188

9999999

Not Available

7

FUEL LINE SUPPLY ASSEMBLY; RMK; SDI

2521189

9999999

Not Available

8

ASM-FUEL FILTER RETAINER

1204261

$47,24 Unit Price incl. VAT

9

SCREW

7512095

$9,44 Unit Price incl. VAT

10

CLAMP-DAMPER

5254413

9999999

Not Available

10

HOSE CLIP

5254414

9999999

Not Available

10

ASM-FUEL RAIL;LE-13;2INJRMK

2521262

9999999

Not Available

10

4-BAR FUEL DAMPER

2521144

9999999

Not Available

10

SCREW-M5X0.8X12.0 SHCS

7519250

9999999

Not Available

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

ASM-THROTTLE BODY;600 F-LEAD

1204816

9999999

Not Available

13

SCREW

3131731

$36,74 Unit Price incl. VAT

13

NUT

3131732

$7,34 Unit Price incl. VAT

14

CLAMP-CABLE NYLON 5/16

7080960

9999999

Not Available

15

SCR-M5X0.8X10 SOC/CP-D

7517847

$5,76 Unit Price incl. VAT

16

CLAMP NYLON CABLE

7080539

$9,44 Unit Price incl. VAT

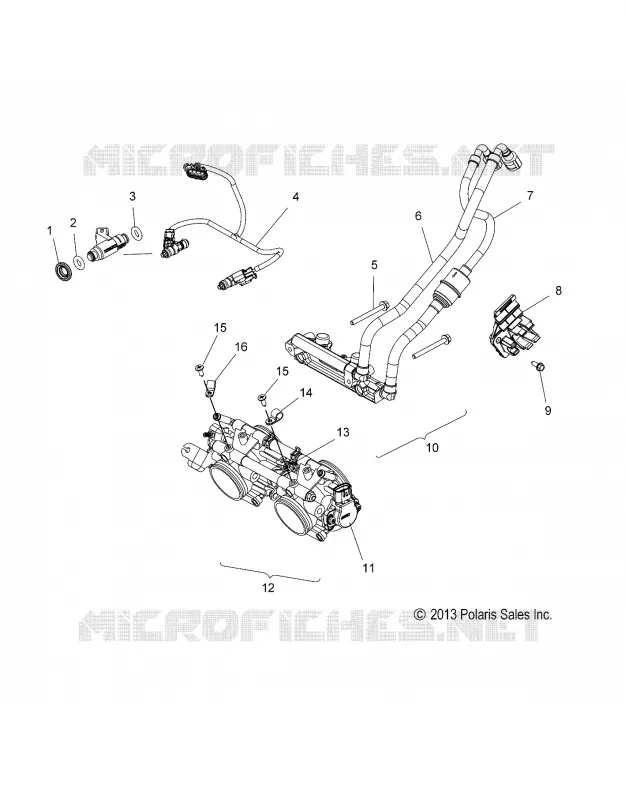

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
