1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog

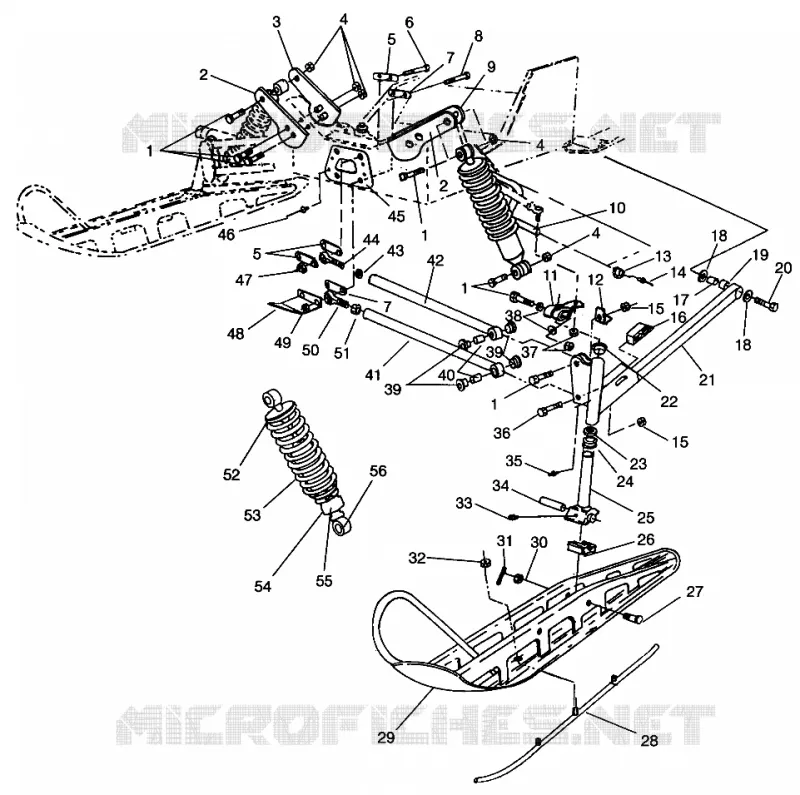

FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)
by
STEERING
FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)
1
BOLT(10)
7515515
9999999
Not Available
2
PLATE SHOCK MT.EXT BLK.
5211449067
Not Available
3
MT RH SHOCK EXT.BLK.
1012053067
Not Available
4
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
5
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
6
BOLT
7512551
9999999
Not Available
7
STRAP SPACER BOTTOM
5211345
9999999
Not Available
8
BOLT
7512678
$36,74 Unit Price incl. VAT
9
MT LH SHOCK EXT.BLK.
1012052067
Not Available
10
BAR SWAY 9/16-41
5224678067
Not Available
11
ARM STEERING
5241244067
Not Available
12
STOP LH STEERING
5241207067
Not Available
12
STOP RH STEERING
5241208067
Not Available
13
BUSHING-SWAYBAR
5410383
9999999
Not Available
14
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
15
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
16
SLIDE SWAYBAR
5432048
Not Available
17
PIVOT-TRAILING ARM
5410382
9999999
Not Available
18
WASHER
7555721
$2,09 Unit Price incl. VAT
19
BUSHING TUBE
5010310
9999999
Not Available
20
BOLT
7512557
9999999
Not Available
21
ARM TRLG LH. (Incl. 17 19)
1822262
Not Available
21
ARM TRLG RH
1822264
9999999
Not Available
22
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE BLK.
6230073067
Not Available
26
STOP RUBBER
5521276
9999999
Not Available
27
BOLT(10)
7515541
9999999
Not Available
28
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
29
SKI WELD BLK
1820332067
Not Available
30
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
31
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
32
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
33
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
34
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
35
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
36
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
37
NUT; FLEXLOC B
7542456
9999999
Not Available
38
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
39
BUSHING-RAD ROD PIVOT
5432074
9999999
Not Available
40
BUSHINGRAD.RODUPP/LOWER
5010356
9999999
Not Available
41
ROD;RAD;LOWER
1822292067
Not Available
42
ROD RAD UPPER
1822297067
Not Available
43
NUT JAM(10)
7542520
9999999
Not Available
44
ROD END; RH
7060155
9999999
Not Available
45
BRACE BLKHD/STRG BLK.
5211589067
Not Available
46
RIVET
7661637
$2,09 Unit Price incl. VAT
47
NUT FLEXLOCK
7542503
9999999
Not Available
48
BRACE PAN
5223997067
Not Available
49
NUT FLEXOC;
7542703
9999999
Not Available
50
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
51
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
52
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
53
SPRING .306 COMP(LT) BLK.
7041405067
Not Available
54
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
55
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
56
SHOCK GAS IFS
7041423
9999999
Not Available

Find the detailed FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
