1
Engine displacement
600
2
Year
2004
3
Trim
600 / 700 / 800 SWITCHBACK
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
BRAKE
by
FRONT SUSPENSION
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
1
1
1
2
2
3
4
4
5
6
6
6
6
6
6
7
7
8
9
10
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
1
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
2
HOSE-ENG OUT/BRAKE COOLER
5412244
9999999
Not Available
2
HOSE-BYPASS/BRAKE COOLER SMBLK
5412432
9999999
Not Available
3
HOSE-BRAKE COOLER/GRIPPER
5412351
9999999
Not Available
4
HOSE-CENTER OUT/BOTTLE IN
5412341
9999999
Not Available
4
HOSE-CENTER OUT/BOTTLE IN SMBL
5412433
9999999
Not Available
5
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
6
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
7
WELD-GRIPPER/DEICER LH
1240104
9999999
Not Available
7
WELD-GRIPPER/DEICER RH
1240105
9999999
Not Available
8
HOSE-GRIPPER/REAR CLOSE-OFF
5412205
9999999
Not Available
9
WELD-EXCHANGER RR CLOSEOFF LWT
1240150
9999999
Not Available
10
RIVET
7661637
$2,09 Unit Price incl. VAT
11
HOSE-GRIPPER/CENTER COOLER
5412083
9999999
Not Available
12
TUBING-CONVOLUTED 1X4.00
5521602
9999999
Not Available
13
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
14
WELD-COOLER BULKHEAD
2520292
9999999
Not Available
15
HOSE-FRT COOLER/ENG OUT
5412236
9999999
Not Available
16
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
17
HOSE-BOTTLE TO ENG
5412237
9999999
Not Available
17
PUMP AND BOTTLE HOSE
5412160
9999999
Not Available
18
CLAMP-HOSE 1.50 VINYL COATED
7080951
9999999
Not Available
18
CLAMP HOSE 1.375 VNL ECOATED
7080908
9999999
Not Available
19
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
20
WELD-BOTTLE COOLANT
2520312
2520598
$99,74 Unit Price incl. VAT
21
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
22
DECAL-WATER BOTTLE CAP
7170063
9999999
Not Available
23
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available

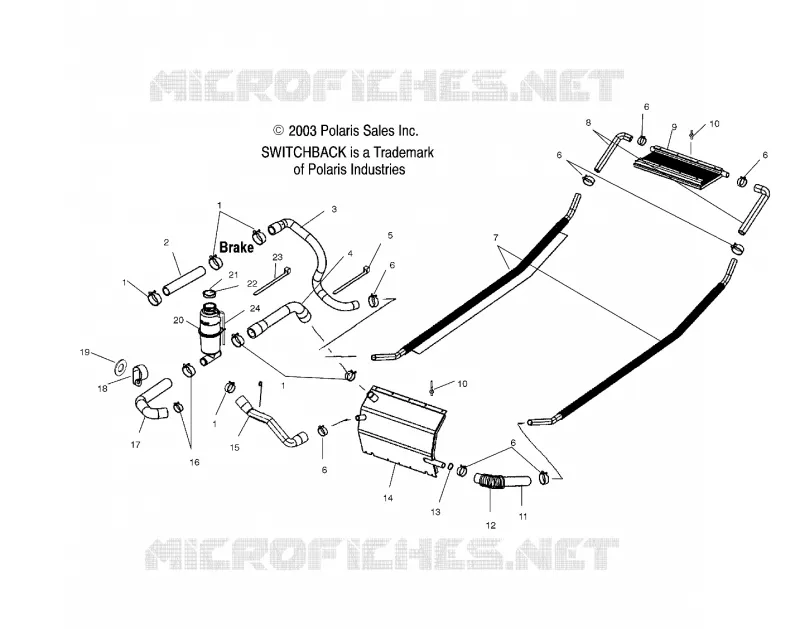

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
