1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
NEEDLE JET
3130730
9999999
Not Available
4
RING
3130752
$10,49 Unit Price incl. VAT
5
DIAPHRAGM ASSEMBLY
3130732
$246,74 Unit Price incl. VAT
6
JET NEEDLE
3131457
9999999
Not Available
7
SCREW
3130541
9999999
Not Available
8
WASHER SPRING
3130540
9999999
Not Available
9
JET BLOCKASM.
3131128
9999999
Not Available
10
WASHER
3130014
$3,14 Unit Price incl. VAT
11
MAIN JET; #122.5
3131458
9999999
Not Available
12
SEAL
3130515
9999999
Not Available
13
PACKING
3130517
9999999
Not Available
14
E-RING
3130518
9999999
Not Available
15
CAP
3130519
9999999
Not Available
16
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
17
PLATE SPACER BRACKET; UPPER; MATTE BLACK
3130594
9999999
Not Available
18
O-RING
3130532
$57,74 Unit Price incl. VAT
19
SCREW
3130520
$3,14 Unit Price incl. VAT
20
FLOATBODY ASSEMBLY
3130590
$204,74 Unit Price incl. VAT
21
SCREW
3130521
$18,89 Unit Price incl. VAT
22
FLOAT ASSEMBLY
3130529
$157,49 Unit Price incl. VAT
23
SCREW
3130591
$7,34 Unit Price incl. VAT
24
NEEDLE VALVE; 1.5
3131360
$99,74 Unit Price incl. VAT
25
O-RING
3130533
$10,49 Unit Price incl. VAT
26
JET-PILOT(#42.5)
3131421
3130526
$62,99 Unit Price incl. VAT
27
ADJUSTER SCREW
3131423
9999999
Not Available
28
SPRING
3130836
9999999
Not Available
29
Valve Throttle [100]
3131460
Not Available
30
SPRING
3130589
9999999
Not Available
31
RING
3130514
9999999
Not Available
32
SCREW
3130501
9999999
Not Available
33
SHAFT ASM;THROTTLE
3130513
9999999
Not Available
34
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
35
SCREW
3130535
$13,64 Unit Price incl. VAT
36
COVER
3130511
$83,99 Unit Price incl. VAT
37
O-RING
3130512
9999999
Not Available
38
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
39
SPRING
3130538
9999999
Not Available
40
PLUNGER ASM.
3130593
3130539
$73,49 Unit Price incl. VAT
41
AIR PILOT JET
3130625
$27,29 Unit Price incl. VAT
42
ASM. CARBURETOR
3131456
3131571
$1 065,74 Unit Price incl. VAT
43
SCREW AND WASHER
3084205
9999999
Not Available
44
SPRING
3131129
9999999
Not Available
45
COVER ASM.
3131127
9999999
Not Available
46
SCREW
3130592
3130924
$3,14 Unit Price incl. VAT

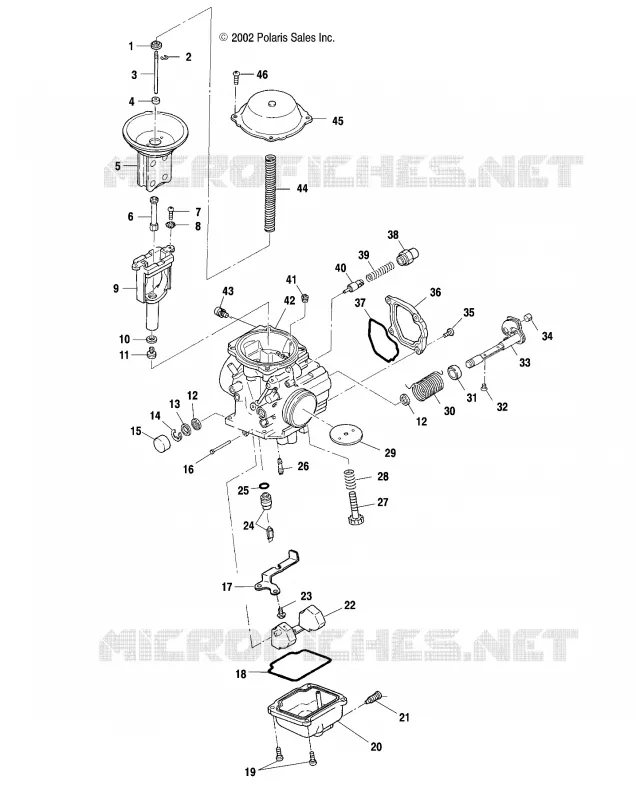

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
