Parts Catalog
DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297015A)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297014A)
by
SUSPENSION ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297016A)
DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297015A)
1
BOLT
7515369
$9,44 Unit Price incl. VAT
1
BOLT
7515356
9999999
Not Available
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020566
9999999
Not Available
4
SPACER DRIVEN CLUTCH
5020645
5135611
$15,74 Unit Price incl. VAT
5
CLUTCH DRIVEN SPLINED
1322145
Not Available
5
CLUTCH DRIVEN
1322141
Not Available
6
DRIVE BELT
3211058
9999999
Not Available
6
BELT DRIVE
3211060
9999999
Not Available
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
7
BUSHING MACHINERY
7555790
9999999
Not Available
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
10
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
11
BEARING
3514513
9999999
Not Available
12
BEARING RELUBE WELD.
1590235
9999999
Not Available
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
KEY-SQUARE
7721204
9999999
Not Available
17
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
18
DISC ASM BRAKE
1910086
9999999
Not Available
19
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
20
O-RING
5410613
$3,66 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
BOLT CARRIAGE
7515428
9999999
Not Available
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
DRIVESHAFT ASM.
1590230
9999999
Not Available
25
DRIVE SHAFT
6230067
9999999
Not Available
26
SPROCKET 9T
5430571
9999999
Not Available
27
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
28
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
29
FLANGETTE
5222591
9999999
Not Available
30
FLANGETTE W/GREASE GROOVE
5222581
9999999
Not Available
31
KEY;SPEEDO;RH DRIVE
3280117
9999999
Not Available
32
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
33
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

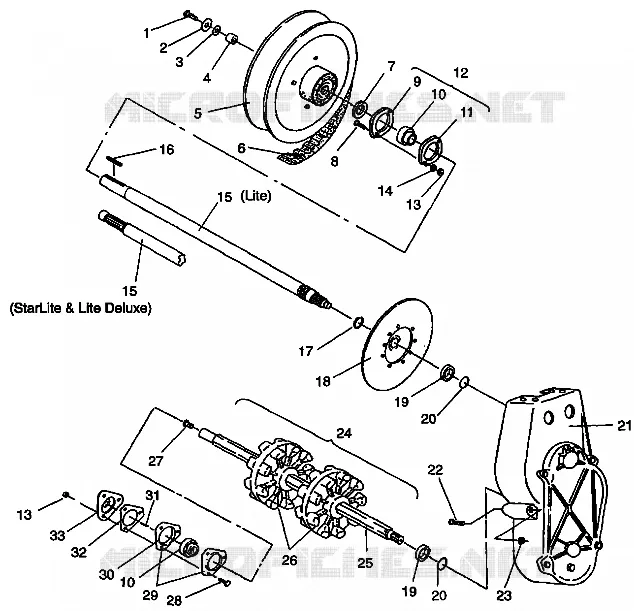

Find the detailed DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/0933431 (4922972297015A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
