1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
REAR TORQUE ARM 600 XCR 0951676 (4929132913B013)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 600 XCR 0951676 (4929132913B012)
by
DRIVE CLUTCH ASSEMBLY 600 XCR 0951676 (4929132913B014)
REAR TORQUE ARM 600 XCR 0951676 (4929132913B013)
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
10
11
12
13
14
15
15
16
17
18
19
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
32
1
ARM R.TORQUE BLK.
1540793067
Not Available
2
SHAFT R.TORQUE ARM
5020727
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
5
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
6
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
7
SPRINGRHR.R.SUSPBLK.437
7041340067
Not Available
7
SPRING RH R.SUSP BLK.
7041249067
Not Available
7
SPRING RH R.R.SUSP BLK .406
7041336067
Not Available
7
SPRING LH R.R.SUSP BLK .437
7041339067
Not Available
7
SPRING LH R.R.SUSP BLK .406
7041335067
Not Available
7
SPRING LH R.SUSP BLK.
7041248067
Not Available
8
TUBE SPRING
5521234
9999999
Not Available
9
COLLAR-BRG. LOCK
5010155
9999999
Not Available
10
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
11
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
12
CARRIER WHEEL
1543023
9999999
Not Available
13
BUSHING
7556509
$3,14 Unit Price incl. VAT
14
BOLT
7512247
9999999
Not Available
15
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
16
STRAP LIMITER
5410587
9999999
Not Available
17
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
18
NUT FLEXLOC
7542402
9999999
Not Available
19
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
20
SPACER R.PIVOT ARM
5333026
9999999
Not Available
21
ROD; SUSP;BLK.
1540792067
Not Available
22
SPACER
5333028
9999999
Not Available
23
BUSHING SHOCK .340
5431542
9999999
Not Available
24
BUSHING 1.40
5020657
9999999
Not Available
25
SCREW
7512463
9999999
Not Available
26
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
27
BOLT
7512329
$7,34 Unit Price incl. VAT
28
BUSHING
5430537
$7,34 Unit Price incl. VAT
29
BUSHING R.SHOCK
5333030
9999999
Not Available
30
SHOCK;GAS;REAR
7041345
9999999
Not Available
31
BOLT NYLOC BLACK
7515493
9999999
Not Available
32
SHAFT MTG REAR
5020570
9999999
Not Available

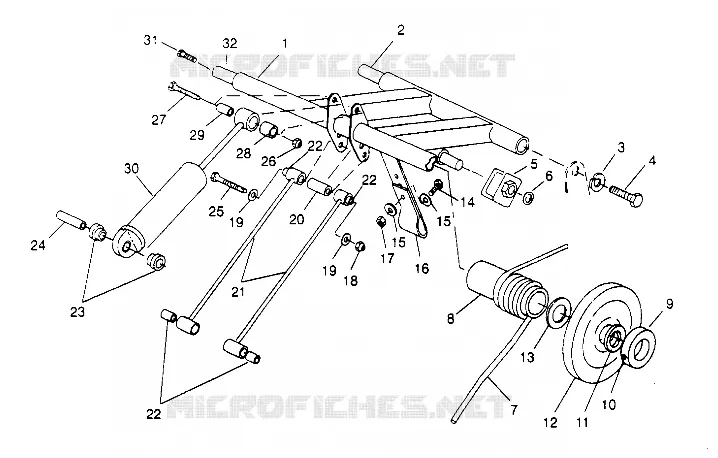

Find the detailed REAR TORQUE ARM 600 XCR 0951676 (4929132913B013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
