FRONT SUSPENSION AND SKI TRAIL (4915441544009A) for POLARIS SWE TRAIL SP

CONSOLE TRAIL (4915441544008A)

DRIVE CLUTCH TRAIL (4915441544019A)

BOLT

7512551

9999999

Not Available

BOLT

7512656

9999999

Not Available

NUT LOCK

7542403

9999999

Not Available

SCREW

7515415

9999999

Not Available

TOP RETAINER

5220225

$19,94 Unit Price incl. VAT

SPRING COIL BLK. Substituted by 7041194-067 (400)

7041126

Not Available

RETAINER SPRING

5210953

$11,54 Unit Price incl. VAT

SHOCK-FRONT

7041143

9999999

Not Available

PIN-COTTER(10)

7661205

$1,56 Unit Price incl. VAT

BOLT

7512404

$7,34 Unit Price incl. VAT

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

SLIDE (FR.SUSP.)

5410385

9999999

Not Available

SLIDE-SWAYBAR

5410384

9999999

Not Available

SCREW

7515433

$3,14 Unit Price incl. VAT

WASHER

7555721

$2,09 Unit Price incl. VAT

TUBE TRAILING ARM

5010187

9999999

Not Available

PIVOT-TRAILING ARM

5410382

9999999

Not Available

BOLT

7512557

9999999

Not Available

ARM-TRAILING RH

1822052

9999999

Not Available

ARM-TRAILING LH

1822053

9999999

Not Available

STOP-STEERING R.H.

5220238

9999999

Not Available

STOP-STEERING L.H.

5220237

9999999

Not Available

ARM STEERING Substituted by 5220326-067

5220326

Not Available

WASHER

7555720

7555806

$1,56 Unit Price incl. VAT

FLANGED BUSHING

3574208

$6,29 Unit Price incl. VAT

DECAL;IFS;TOP;SIL/BLUE

7072543

9999999

Not Available

SPINDLE GREASABLE Substituted by 5130919-067

6230055

Not Available

FITTING-LUBE.

7080220

9999999

Not Available

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

STOP-RUBBER

5521094

9999999

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

SCREW

7515462

9999999

Not Available

SKI SKAG WELD

1820267

$40,94 Unit Price incl. VAT

SKAG PR.3 CARBIDE(STEEL SKI)

2870693

$99,74 Unit Price incl. VAT

SKI INDY(SWED)

1820258

9999999

Not Available

SKI Substituted by 1820332-067 (Trail Trail ES Only)

1820268

Not Available

SKI Substituted by 1820332-067 (Trail Special & Deluxe Only)

1820264

Not Available

SCREW

7512410

7515540

$9,44 Unit Price incl. VAT

RADIUS ROD BUSHING

5010127

$12,59 Unit Price incl. VAT

ROD RADIUS BLACK Substituted by 1822045-067

1822045

Not Available

ROD RADIUS Substituted by 1822055-067 (Trail Special)

1822055

Not Available

ROD RADIUS Substituted by 1822054-067 (Trail Special)

1822054

Not Available

ROD-RADIUS Substituted by 1822037-067

1822037

Not Available

NUT JAM(10)

7542520

9999999

Not Available

ROD END RH

7060126

9999999

Not Available

STRAP-SPACER

5220178

9999999

Not Available

NUT FLEXLOCK

7542503

9999999

Not Available

BRACE; PAN

5223997

9999999

Not Available

NUT FLEXOC;

7542703

9999999

Not Available

ROD END

7060127

9999999

Not Available

STRAP-SPACER BOTTOM

5220227

9999999

Not Available

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

FLEXLOC NUT

7542411

$6,29 Unit Price incl. VAT

FLANGE BUSHING

3573909

$4,19 Unit Price incl. VAT

BUSHING

7556509

$3,14 Unit Price incl. VAT

BAR-SWAY 9/16

5224237

5224237-067

Not Available

SWAY BAR

5224240

9999999

Not Available

BUSHING-SWAYBAR

5410383

9999999

Not Available

SWAY BAR BUSHING

5410386

9999999

Not Available

RIVET

7621433

$2,09 Unit Price incl. VAT

DECAL RH IFS BLUE [No Longer Available]

7072565

Not Available

DECAL LH IFS BLUE [No Longer Available]

7072564

Not Available

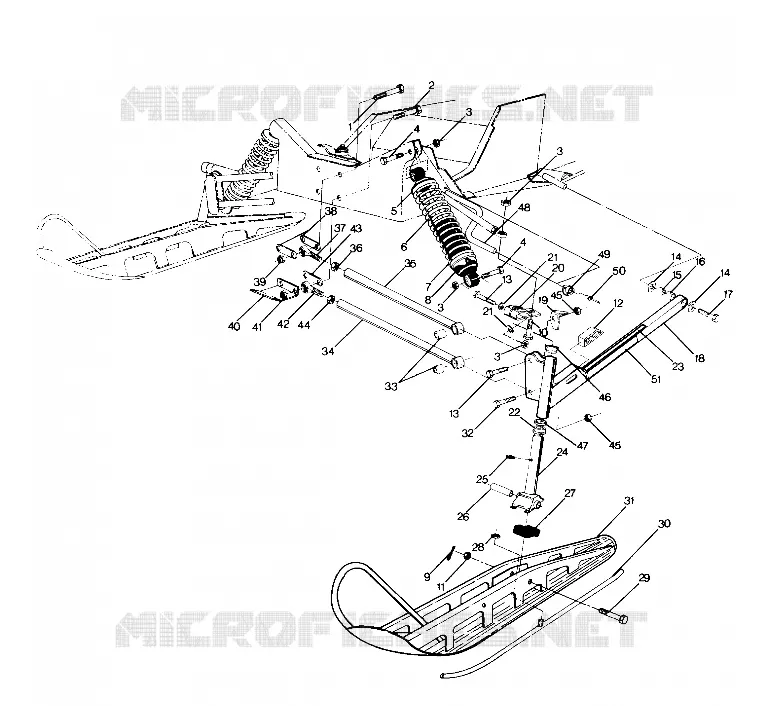

Find the detailed FRONT SUSPENSION AND SKI TRAIL (4915441544009A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
