DRIVE TRAIN, FRONT GEARCASE INTERNALS
12
11
11
11
16
11
18
11
20
20
21
21
21
21
11
11
24
25
26
26
27
28
29
11
31
32
33
34
35
11
37
1
GEARCASE ASSEMBLY FRONT
1333070
1337627
Not Available
2
COVER PLATE
3234159
$892,49 Unit Price incl. VAT
3
BUTTON-THRUST
3234375
$19,94 Unit Price incl. VAT
4
THRUST PLATE
3234165
$52,49 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SET-SCREW #10-14 W/NYLOK
3234408
$52,49 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
RACE OUTPUT HUB
3233953
$745,49 Unit Price incl. VAT
10
NEEDLE ROLLER THRUST BEARING
3233929
3233953
$745,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
PIN-DOWEL 1/2 DIA X 1 IN
3233928
$41,99 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
ROLLER KIT
3233957
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
ARMATURE PLATE
3234101
$204,74 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
KIT-BOLT
3233955
$57,74 Unit Price incl. VAT
21
GEARCASE SEAL KIT; FRONT
3233956
$136,49 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
RING-RETAINING INTERNAL
3234162
$52,49 Unit Price incl. VAT
25
ARMATURE PLATE; SHIM
3234161
$68,24 Unit Price incl. VAT
26
ROLLER BALL BEARING
3233926
$101,84 Unit Price incl. VAT
27
ROLL CAGE ASSEMBLY
3235346
$472,49 Unit Price incl. VAT
28
MAGNETIC DRAIN PLUG ASSEMBLY
3234412
$83,99 Unit Price incl. VAT
29
OIL FILL PLUG; 3/4-16 HOLLOW
3233942
$62,99 Unit Price incl. VAT
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
BEARING-DEEP GROVE ROLLER BALL
3234112
$101,84 Unit Price incl. VAT
32
INPUT COVER
3234619
9999999
Not Available
33
EXTERNAL RETAINING RING; BOW
3235177
$11,54 Unit Price incl. VAT
34
KIT-GEAR HARD TURNED 62039U117
3235387
$1 259,99 Unit Price incl. VAT
35
SHIM-GEAR
3235176
$115,49 Unit Price incl. VAT
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
SPRING-TORSION 6203-35-057
3235347
$36,74 Unit Price incl. VAT

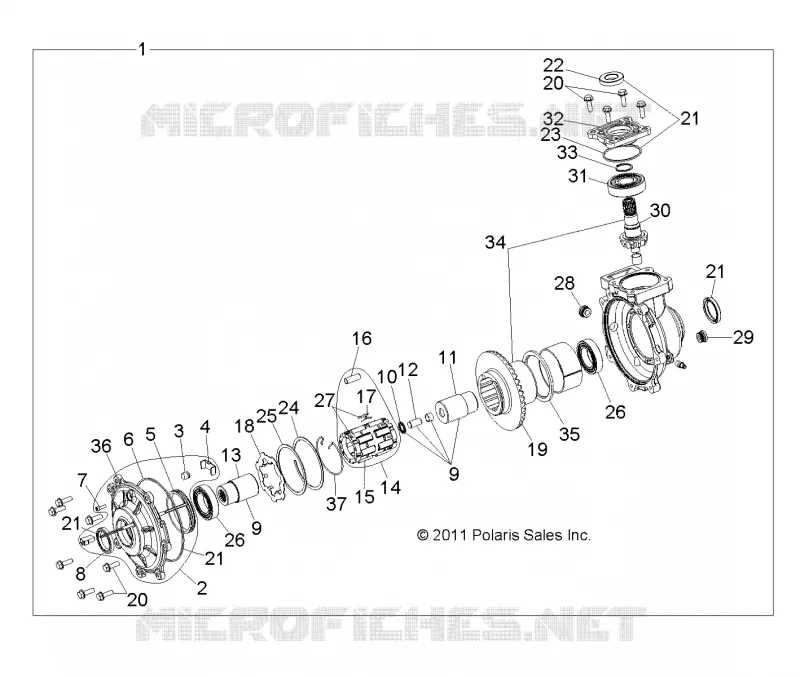

Find the detailed DRIVE TRAIN, FRONT GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RANGER EV LI-ION RANGER EV LIION 2017
