1
SEAL WATER PIPE
5411107
9999999
Not Available
2
SEAL SIPHON TUBE
5411016
9999999
Not Available
3
PIPE;WATER;BILGE
5431990
9999999
Not Available
4
NUT HEX S.S.(10)
7542455
9999999
Not Available
5
BRKT STEERING CABLE NUT
5244556
9999999
Not Available
6
WASHER PUMPSTUD SEAL
7555941
9999999
Not Available
7
STUD MOUNT PUMP 1.38 INT.
5132355
9999999
Not Available
8
PIPE WATER ENGINE 7.4 INCH
5433334
9999999
Not Available
9
O RING;(10)
5410735
9999999
Not Available
10
BEARING
3514008
9999999
Not Available
11
SPACER
5010294
9999999
Not Available
12
STATOR SS ASIA TREND
5132088
9999999
Not Available
13
O-RING(10)
5410817
9999999
Not Available
14
O-RING(10)
5410818
9999999
Not Available
15
SHAFT; STUB
5020697
9999999
Not Available
16
O-RING(10)
5410819
9999999
Not Available
17
SEAL BRG STATOR
3610043
9999999
Not Available
18
SPACER IMPELLER
5010295
9999999
Not Available
19
IMPELLER 17-23 3 BLADE SS
5131366
9999999
Not Available
20
HOSE WATER
8450054100
Not Available
21
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
22
SCREW(10)
7522019
9999999
Not Available
23
ANODE-ZINC
5630598
9999999
Not Available
24
HSG;PUMP;W/RING;INT STUD
5131574
9999999
Not Available
25
WASHER
7555966
$4,15 Unit Price incl. VAT
26
SEALTAILCONE
5811984
9999999
Not Available
27
SCREEN ENG.INLET
5431523
9999999
Not Available
28
WEDGE PUMP 0X4 MOLDED
5432841
9999999
Not Available
29
SCREW
7517654
9999999
Not Available
30
WASHER FLAT S.S.(10)
7555835
9999999
Not Available
31
WASHER LOCK S.S.
7552610
9999999
Not Available
32
NOZZLE STEERING
5130999
9999999
Not Available
33
BRG STRG.NOZZLE
5431518
9999999
Not Available
34
COLLAR
5130938
9999999
Not Available
35
BOLT S.S.
7515366
9999999
Not Available
36
NOZZLE ASM;0X4 WEDGE
1350038
9999999
Not Available
37
CONE PUMP
5431519
9999999
Not Available
38
SCREW
7512064
9999999
Not Available

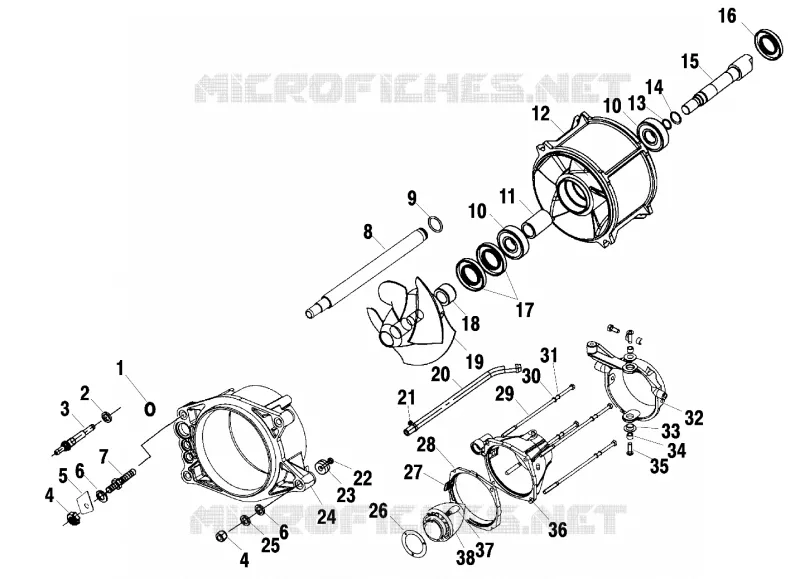

Find the detailed PROPULSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

GENESIS 1200 2000
