CHASSIS, BULKHEAD ASM. for POLARIS 550 INDY from 2020

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

SCREW

7516732

$3,14 Unit Price incl. VAT

2

DART CLIP

7670067

$7,34 Unit Price incl. VAT

3

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

4

BRKT-LWR SUPPORT;RESONATOR

5255064

$73,49 Unit Price incl. VAT

5

ASM-CLIP F/C;RH

1018222

$635,24 Unit Price incl. VAT

5

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

6

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

7

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

8

BRACE LOWER RIGHT MACHINED

5138693

$167,99 Unit Price incl. VAT

9

TUBE-CROSS M10X1.5 377.44MM

5137910

$99,74 Unit Price incl. VAT

10

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$7,34 Unit Price incl. VAT

11

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

12

BRKT-PIPE/CHASSIS

5252680

$10,49 Unit Price incl. VAT

13

FLOOR VENT

5256780

$83,99 Unit Price incl. VAT

14

FLOOR-BULKHEAD VENTED

5256779

$47,24 Unit Price incl. VAT

15

RIVET

7661637

$2,09 Unit Price incl. VAT

16

BRACE LOWER LEFT ASSEMBLY

1017942

$125,99 Unit Price incl. VAT

17

FLANGETTE-3BOLT 0MM OFFSET IN

5252739

$18,89 Unit Price incl. VAT

18

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

19

FENDER CLIP ASSEMBLY; LEFT

1018221

$635,24 Unit Price incl. VAT

19

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

20

CLAMP-SPEED SENSOR WIRE

5266053

$15,74 Unit Price incl. VAT

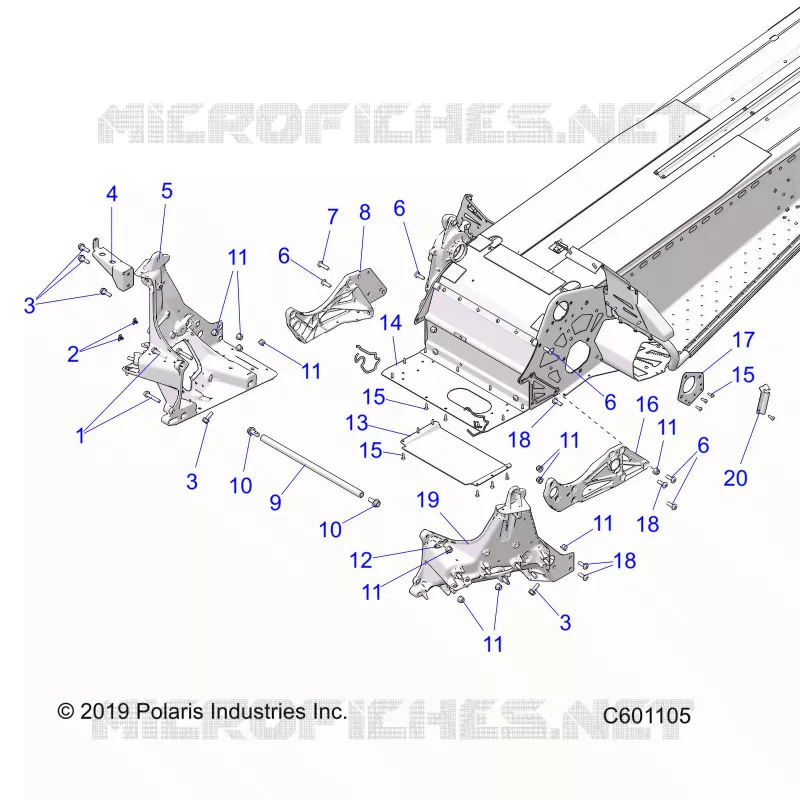

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
