SUSPENSION XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B010)
-
-
1
2
2
3
3
3
4
4
4
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
26
26
26
26
26
27
27
27
28
28
28
29
29
29
29
29
30
30
30
30
31
31
31
31
32
32
33
34
35
36
36
36
36
37
37
37
38
39
40
41
42
43
43
44
45
46
17
48
49
50
51
52
53
54
55
56
57
58
59
60
61
-
-
1
2
2
3
3
3
4
4
4
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
26
26
26
26
26
27
27
27
28
28
28
29
29
29
29
29
30
30
30
30
31
31
31
31
32
32
33
34
35
36
36
36
36
37
37
37
38
39
40
41
42
43
43
44
45
46
17
48
49
50
51
52
53
54
55
56
57
58
59
60
61
-
RAIL ASMLH(XTRA-12)
1540998
9999999
Not Available
-
RAIL ASMRH(XTRA-12)
1540999
9999999
Not Available
1
DECAL; PAT.PENDING
7074922
9999999
Not Available
2
NUT FLEXLOC
7542402
9999999
Not Available
3
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
4
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
5
SHAFT
5333404
$47,24 Unit Price incl. VAT
6
SPACER INNER IDLER
5010169
9999999
Not Available
7
WHEEL; IDLER
1594021
9999999
Not Available
8
SPACER IDLER R.INNER
5333086
9999999
Not Available
9
SHAFT IDLER
5020722
9999999
Not Available
10
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
11
ARM R.PIVOT
1540971067
Not Available
12
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
13
BUMPER R.PIVOT ARM
5410937
9999999
Not Available
14
BLOCK R.PIVOT ARM STOP
5131111
9999999
Not Available
15
NUT LOCK
7542403
9999999
Not Available
16
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
17
SCREW
7515156
$7,34 Unit Price incl. VAT
18
SPACER-IDLER-OUTER
5332641
9999999
Not Available
19
WHEEL IDLER LAV.
1594049
9999999
Not Available
20
WASHER
7571629
7556130
$11,54 Unit Price incl. VAT
21
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
22
RIVET
7621501
$4,19 Unit Price incl. VAT
23
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
24
ADJUSTER BOLT
7515455
9999999
Not Available
25
SCREW
7515543
9999999
Not Available
26
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
27
BOLT
7512538
9999999
Not Available
28
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
29
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
30
BOLT
7512404
$7,34 Unit Price incl. VAT
31
SPACER
5630399
$20,99 Unit Price incl. VAT
32
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
33
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
34
BEARING
3514303
$20,99 Unit Price incl. VAT
35
RIVET(10)
7621488
9999999
Not Available
36
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
37
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
38
BOLT
7515538
9999999
Not Available
39
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
40
BOLT
7512508
9999999
Not Available
41
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
42
BOLT
7515546
9999999
Not Available
43
BOSS BOLT HEAD
5131112
9999999
Not Available
44
BOLT
7515542
9999999
Not Available
45
SLIDER; BLACK
5521320
9999999
Not Available
46
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
47
SCREW
7515156
$7,34 Unit Price incl. VAT
48
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
49
TRACK;121";CAMO.PADDLETRACK
5410964
5411059
Not Available
50
COVER RAIL TIP
5431421
9999999
Not Available
51
SHAFT LIMITER STRAP BLK.
1012267067
Not Available
52
ARM SHOCK PIVOT
1540968067
Not Available
53
SHAFT R.SHOCK BRKT.
5020649
9999999
Not Available
54
WASHER
7555743
9999999
Not Available
55
BLOCK; SPRING SLIDER
5431924
9999999
Not Available
56
BUSHING
5010332
9999999
Not Available
57
BRKT BUMPER SUPPORT
5240946
9999999
Not Available
58
BUMPER JOUNCE RAIL LT
5811065
9999999
Not Available
59
BOLT(10)
7515537
$15,74 Unit Price incl. VAT
60
BUMPER MOUNT
5131113
$52,49 Unit Price incl. VAT
61
PIVOT ARM BUMPER
5410925
$26,24 Unit Price incl. VAT

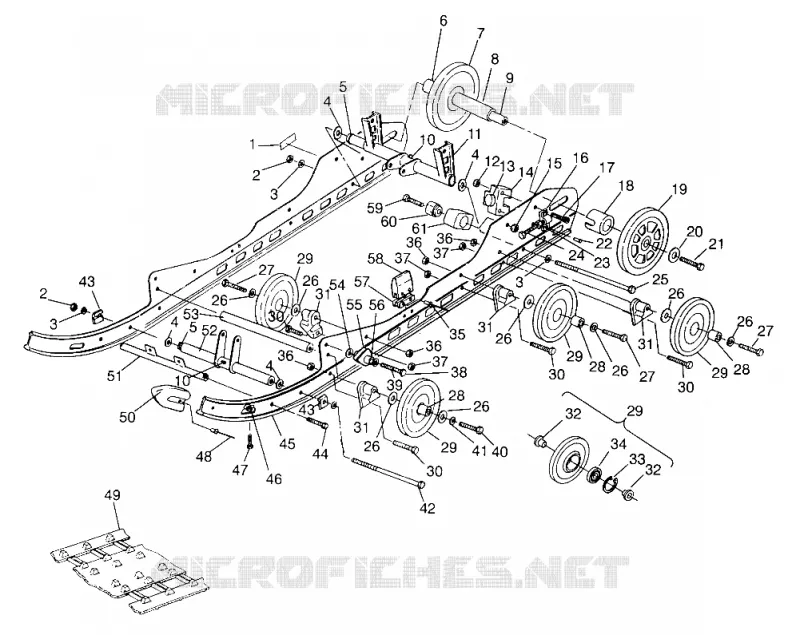

Find the detailed SUSPENSION XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
