1
Engine displacement
700
2
Year
1997
3
Trim
700 RMK - 0970966
4
Parts Catalog

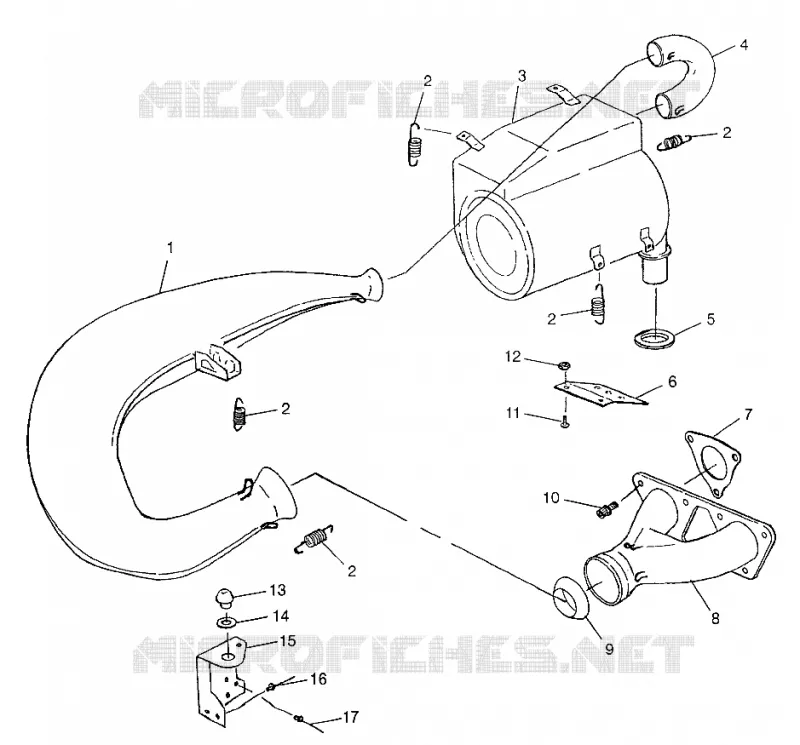

EXHAUST SYSTEM 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E97056 (4938573857C004)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E970 (4938573857C003)
by
OIL TANK/AIR BOX 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E970 (4938573857C005)
EXHAUST SYSTEM 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E97056 (4938573857C004)
1
1
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
PIPE ASM TUNED
1260764
Not Available
1
BAND MUFFLER
7080686
9999999
Not Available
2
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
3
RESONATOR BLK
1260808029
Not Available
4
U-TUBE BLK.
1260802029
Not Available
5
OUTLET EXH RUBBER
5411258
9999999
Not Available
6
DEFLECTOR SNOW
5222615067
Not Available
7
GASKET EXHAUST
5811274
9999999
Not Available
8
MANIFOLD BLK
1260757029
Not Available
9
EXHAUST SOCKET SEAL
3610046
$62,99 Unit Price incl. VAT
10
SCREW
7517322
$4,19 Unit Price incl. VAT
11
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
12
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
13
VIBRATION DAMPENER
5410467
9999999
Not Available
14
WASHER THRUST
7555788
9999999
Not Available
15
BRKT MUFFLER FRONT-Z
5241832
9999999
Not Available
16
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
17
RIVET
7661637
$2,09 Unit Price incl. VAT

Find the detailed EXHAUST SYSTEM 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E97056 (4938573857C004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
