1
Engine displacement
550
2
Year
2011
3
Trim
SPORTSMAN TOURING EPS 550 INTL - A11DX55FL
4
Parts Catalog

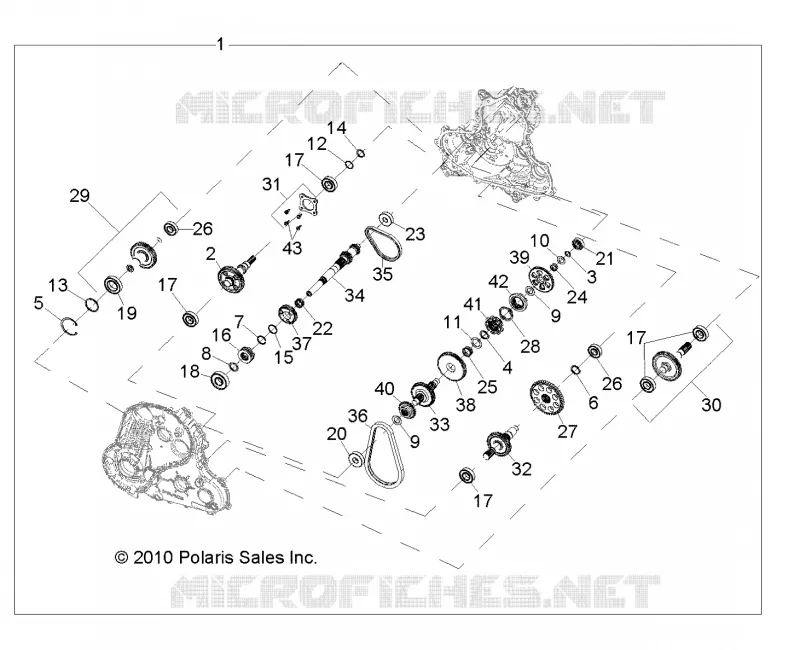

DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/02/11 AND AFTER)
5
Parts Diagram
Parts Catalog
TOOL KIT
by
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS (BUILT 3/01/11 AND BEFORE)
DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/02/11 AND AFTER)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
31
1
ASM-TRANS 550;BOSS/LUK
1332847
9999999
Not Available
2
INPUT SHAFT
3235194
$435,74 Unit Price incl. VAT
3
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
4
RING; RETAINING BASIC; EXTERNA
3234327
$13,64 Unit Price incl. VAT
5
INTERNAL RETAINING RING
3234741
$17,84 Unit Price incl. VAT
6
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
7
EXTERNAL RETAINING RING
3234641
$26,24 Unit Price incl. VAT
8
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
9
SHIM
3234643
$68,24 Unit Price incl. VAT
10
SHIM
3234644
$26,24 Unit Price incl. VAT
11
WASHER; THRUST
3234646
$41,99 Unit Price incl. VAT
12
INPUT SHAFT SHIM PACK KIT
2204343
$54,59 Unit Price incl. VAT
13
SHIM KIT
2204268
$68,24 Unit Price incl. VAT
14
SNAP RING
3233106
$10,49 Unit Price incl. VAT
15
WASHER; THRUST
3234757
$20,99 Unit Price incl. VAT
16
DOG-ENGAGEMENT GTO HIGH
3235190
$136,49 Unit Price incl. VAT
17
BEARING
3233019
$54,59 Unit Price incl. VAT
18
BEARING
3233020
$80,84 Unit Price incl. VAT
19
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
20
BALL BEARING
3234651
$27,29 Unit Price incl. VAT
21
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
22
NEEDLE BEARING
3234759
$27,29 Unit Price incl. VAT
23
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
24
BEARING; NEEDLE
3234655
$27,29 Unit Price incl. VAT
25
NEEDLE BEARING
3234656
$27,29 Unit Price incl. VAT
26
BEARING
3233018
$47,24 Unit Price incl. VAT
27
SPROCKET; 44 TOOTH
3234998
$125,99 Unit Price incl. VAT
28
SPRING; WAVE
3234688
$19,94 Unit Price incl. VAT
29
PRIMARY SHAFT SUB ASSEMBY; 50 TOOTH
3235191
$577,49 Unit Price incl. VAT
30
OUTPUT ASSEMBLY; FRONT
3234723
$414,74 Unit Price incl. VAT
31
SUB ASSSEMBLY; BEARING COVER
3235198
$40,94 Unit Price incl. VAT
32
OUTPUT SHAFT
3235195
$430,49 Unit Price incl. VAT
33
SHAFT; REVERSE; 56T
3234736
$482,99 Unit Price incl. VAT
34
INPUT SHAFT; 25 TOOTH
3235063
$593,24 Unit Price incl. VAT
35
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
36
SILENT CHAIN
3234738
$456,74 Unit Price incl. VAT
37
HELICAL GEAR; 39T
3235132
9999999
Not Available
38
GEAR; 67T
3234706
$173,24 Unit Price incl. VAT
39
SPROCKET; 48 TOOTH
3234707
$68,24 Unit Price incl. VAT
40
SPROCKET 23 TOOTH
3234708
3235544
$73,49 Unit Price incl. VAT
41
DOG; ENGAGEMENT; LOW
3234718
$346,49 Unit Price incl. VAT
42
DOG-ENGAGEMENT GTO REV/LOW
3235341
$335,99 Unit Price incl. VAT
43
SUB ASSSEMBLY; BEARING COVER
3235198
$40,94 Unit Price incl. VAT

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/02/11 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
