1
Engine displacement
autre
2
Year
1997
3
Trim
MAGNUM 4X4 - W97AC42A
4
Parts Catalog

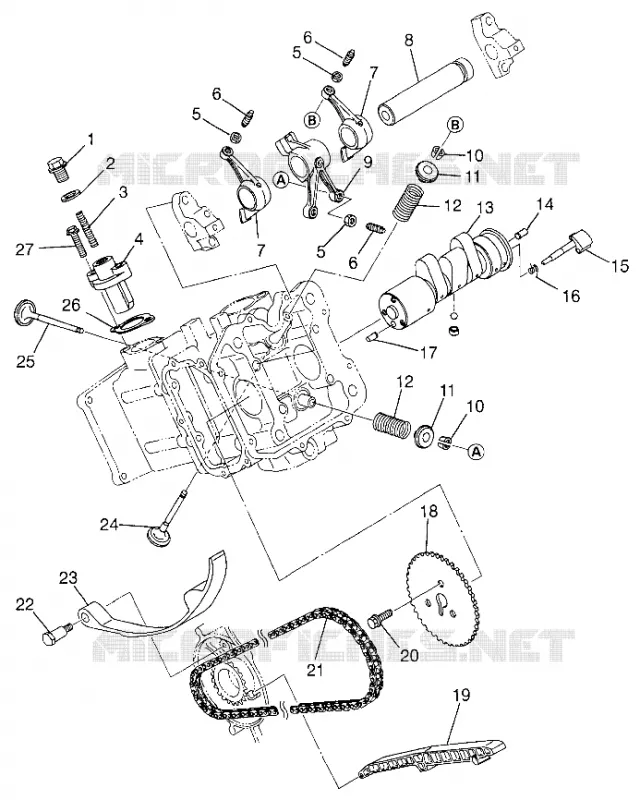

INLET EXHAUST MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NOR (4940834083D001)
5
Parts Diagram
Parts Catalog
FOOT PEDAL PARKING BRAKE SWEDISH MAGNUM 4X4 S97AC42E AND NORWEGIAN MAGN (4940834083C04A)
by
RECOIL STARTER MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NORWEGI (4940834083D006)
INLET EXHAUST MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NOR (4940834083D001)
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
12
12
12
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
18
18
18
19
19
19
20
20
20
21
21
21
22
22
22
23
23
23
24
24
24
25
25
25
26
26
26
27
27
27
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
12
12
12
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
18
18
18
19
19
19
20
20
20
21
21
21
22
22
22
23
23
23
24
24
24
25
25
25
26
26
26
27
27
27
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
12
12
12
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
18
18
18
19
19
19
20
20
20
21
21
21
22
22
22
23
23
23
24
24
24
25
25
25
26
26
26
27
27
27
1
2
2
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
1
PLUG
3084845
9999999
Not Available
2
GASKET PLUG
3084920
9999999
Not Available
3
SPRING TENSIONER
3084919
Not Available
4
TENSIONER ASM.
3084918
9999999
Not Available
5
NUT(10)
3084912
9999999
Not Available
6
ADJUSTING SCREW
3084911
9999999
Not Available
7
INTAKE ROCKER ARM ASSEMBLY
3084910
9999999
Not Available
8
ROCKER SHAFT
3084909
9999999
Not Available
9
EXHASUT ROCKER ARM ASSEMBLY
3084913
9999999
Not Available
10
COLLET VALVE
3084908
9999999
Not Available
11
RETAINER SPRING
3084907
9999999
Not Available
12
SPRING VALVE
3084906
9999999
Not Available
13
ASM. CAMSHAFT
3084898
9999999
Not Available
14
PIN; DOWEL
3080103
9999999
Not Available
15
LEVER RELEASE
3085348
9999999
Not Available
16
RETURN SPRING
3085076
9999999
Not Available
17
PIN DOWEL
3084899
9999999
Not Available
18
SPROCKET
3084914
9999999
Not Available
19
GUIDE CHAIN
3084916
9999999
Not Available
20
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
21
TIMING CHAIN
3084915
9999999
Not Available
22
ASM. BOLT PIVOT LEVER
3084924
9999999
Not Available
23
LEVER
3084917
9999999
Not Available
24
INTAKE VALVE
3085349
9999999
Not Available
25
VALVE EXHAUST
3084905
9999999
Not Available
26
GASKET TENSIONER
3084922
9999999
Not Available
27
FLANGE BOLT
3084874
9999999
Not Available

Find the detailed INLET EXHAUST MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NOR (4940834083D001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
