1
Engine displacement
550
2
Year
2023
3
Trim
550 RMK EVO 144
4
Parts Catalog
REAR SUSPENSION AND TRACK
5
Parts Diagram
Parts Catalog
SUSPENSION, RAIL, LH/RH
by
SUSPENSION, FRONT SHOCK TRACK (7045714)
REAR SUSPENSION AND TRACK
1
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT
2
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
3
WASHER
7556153
$3,66 Unit Price incl. VAT
4
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
5
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
6
CLIP-TRACK FLAT 012-0107 (10
5251273
$18,89 Unit Price incl. VAT
6
LONG GUIDE TRACK CLIP
5251274
$13,64 Unit Price incl. VAT
6
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
6
TRACK-15X144 1.75 BACKCOUNTRY
5416633
$1 233,74 Unit Price incl. VAT
7
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
8
IDLER SPACER
5436496
$11,54 Unit Price incl. VAT
9
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
10
BUSHING
7555918
$3,14 Unit Price incl. VAT
11
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
11
ASM-WHEEL WEB 8.50 6004 BLK
1590499070
Not Available
11
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
12
SPACER IDLER CENTER
5333283
$27,29 Unit Price incl. VAT
13
IDLER SHAFT; 10 MM X 1.5 MM
5137224
$52,49 Unit Price incl. VAT
14
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$36,74 Unit Price incl. VAT
15
CROSS SHAFT; RMK
5137418
$62,99 Unit Price incl. VAT
16
WELD-REAR PIVOT ARM; ECOAT
1544229329
Not Available
17
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
18
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
19
SHAFT 17.45 X 214.77
5137312
$52,49 Unit Price incl. VAT
20
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
21
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT
22
SHOCK CENTERING SPACER
5336325
$27,29 Unit Price incl. VAT
23
WSHR-.719X1.250X.065-Y
7556210
$7,34 Unit Price incl. VAT
24
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
25
STOP-SCISSOR MACH
5142932
$52,49 Unit Price incl. VAT
26
SHOULDER BOLT
7517607
$10,49 Unit Price incl. VAT

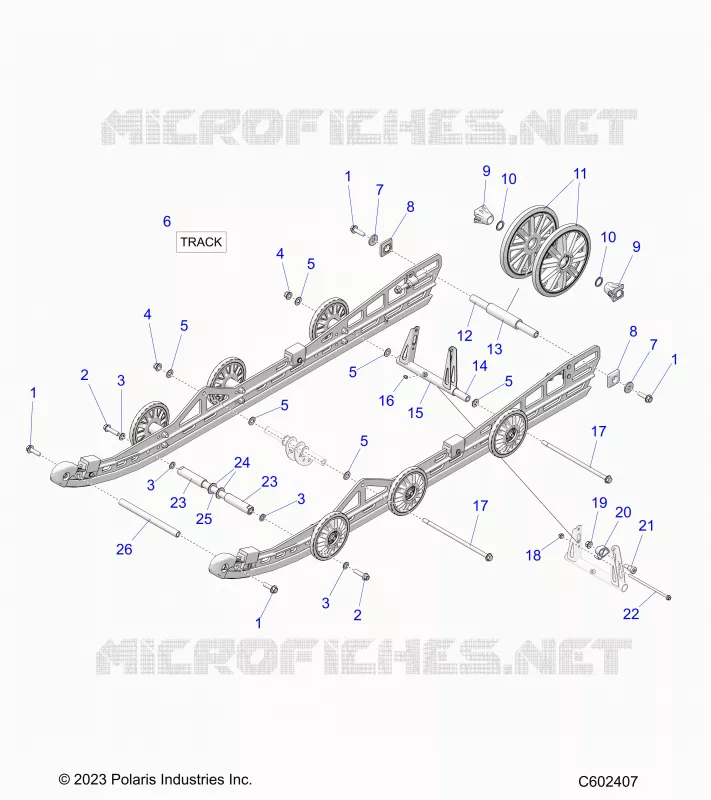

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
