1
Engine displacement
700
2
Year
1998
3
Trim
700 XCR - 0985678A
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
OIL PUMP 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311D003)
CYLINDER
1
BOLT
3080109
9999999
Not Available
2
MANIFOLD OUTLET WATER
3085115
Not Available
3
PLUG; AIR VENT
3083350
9999999
Not Available
4
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
5
GASKET
3082937
9999999
Not Available
6
COVER HEAD
3085108
Not Available
7
BOLT; FLANGE
3084437
9999999
Not Available
8
BOLT FLANGE (10)
3084435
9999999
Not Available
9
SENSORTEMPERATURE
4110179
9999999
Not Available
10
O-RING (CYL.HD.)
3085110
9999999
Not Available
11
O-RING (HD.COVER)
3085111
9999999
Not Available
12
HEADCYLINDER
3085479
9999999
Not Available
13
PIN; DOWEL
3080103
9999999
Not Available
14
O-RING
3085112
9999999
Not Available
15
STUD
3085326
9999999
Not Available
16
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
17
CYLINDER L/C SINGLE
3085478
9999999
Not Available
18
GASKET EXH
3084439
9999999
Not Available
19
LOCK WASHER
3080530
9999999
Not Available
20
NUT
3080285
9999999
Not Available
21
CYLINDER GASKET
3085243
9999999
Not Available
22
BOLT FLANGE
3084126
9999999
Not Available
23
ADAPTER
3085248
Not Available
24
REED VALVE ASM.
3085249
9999999
Not Available
25
GASKET COVER INLET WATER
3085247
9999999
Not Available
26
COVER WATER INLET
3085246
9999999
Not Available
27
O-RING
3084461
9999999
Not Available
28
BOLT; FLANGE
3084177
9999999
Not Available
29
VALVE REED
3084563
9999999
Not Available
30
STOPPER
3085274
Not Available
31
SCREW REED
3084565
9999999
Not Available
32
BANJO BOLT
3083137
9999999
Not Available
33
VALVE CHECK
3083894
9999999
Not Available
34
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
35
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
36
PAN HEAD SCREW
3081497
9999999
Not Available
37
FLANGE NUT
3083856
9999999
Not Available

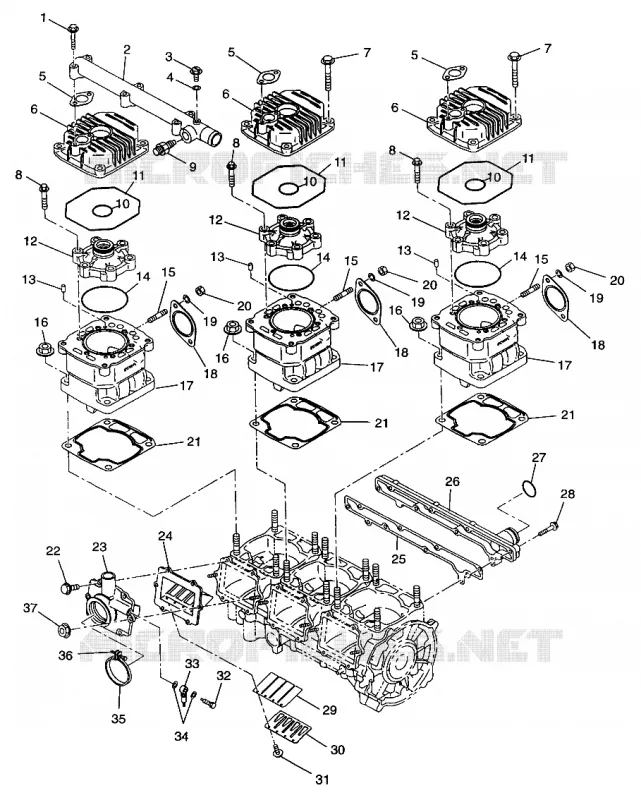

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
