Engine displacement
500
2
Year
2003
3
Trim
500 XC SP EDGE M-10 F/O
4
Parts Catalog
CONSOLE
5
Parts Diagram
Parts Catalog
CHASSIS
by
COOLING SYSTEM
CONSOLE
1
CONTROLLER-M-10 ACEELECTRIC
4010597
9999999
Not Available
2
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
3
AC/DC REGULATOR
4010794
$188,99 Unit Price incl. VAT
3
AC REGULATOR; 14.3V
4010793
9999999
Not Available
4
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
5
REGULATOR-RCTFR 1/2WAVE W/CONN
4010730
9999999
Not Available
6
HOUSING-CONNECTOR PAC#12186213
4010193
9999999
Not Available
7
SOCKET-PACKARD#12047767
4010192
9999999
Not Available
8
TERMINAL; RING
4020092
9999999
Not Available
9
HARNESS-MAIN TPS E/R SHK DIAG
2461120
9999999
Not Available
9
HARNESS-MAIN EDGE DIAG
2461116
9999999
Not Available
10
HOUSING
4020057
9999999
Not Available
11
HOUSING PACK
4020063
9999999
Not Available
12
CAP W/KEY
5410611
9990000
Not Available
13
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT
14
NUT CHOKE
5432944
$15,74 Unit Price incl. VAT
15
SCREW
7515199
$2,09 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
CHOKE CABLE
7080946
9999999
Not Available
18
LEVER CHOKE
5432943
2201439
$47,24 Unit Price incl. VAT
19
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
20
IGNITION SWITCH KIT; ES; FUEL
2201614
9999999
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
CONSOLE
5434134
9999999
Not Available
23
SCREW HX/SEMS
7517263
9999999
Not Available
23
SCREW
7512031
9999999
Not Available
24
SCREW W/WASHER
7512050
9999999
Not Available

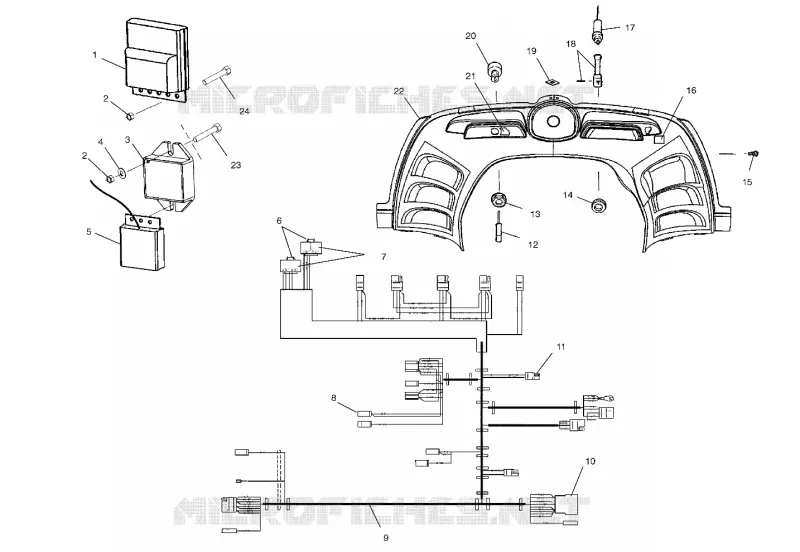

Find the detailed CONSOLE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
