Engine displacement
325
2
Year
2002
3
Trim
325 MAGNUM 2X4 HDS - A02CB32FC
4
Parts Catalog
REAR BRAKE
5
Parts Diagram
Parts Catalog
SHOCK MOUNTING
by
CONTROLS
REAR BRAKE
1
1
1
1
1
2
2
2
2
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
16
17
18
18
19
20
21
22
23
23
24
25
26
27
27
28
29
30
31
19
1
1
1
1
1
2
2
2
2
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
16
17
18
18
19
20
21
22
23
23
24
25
26
27
27
28
29
30
31
19
1
1
1
1
1
2
2
2
2
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
16
17
18
18
19
20
21
22
23
23
24
25
26
27
27
28
29
30
31
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
19
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
14
14
14
15
16
17
18
18
1
ANVIL BODY KIT
2201873
$249,89 Unit Price incl. VAT
2
SLIDE BOLT KIT
2201870
$120,74 Unit Price incl. VAT
3
SEAL KIT; DH4P
2201872
$120,74 Unit Price incl. VAT
4
PISTON SEAL KIT
2201869
$225,74 Unit Price incl. VAT
5
CALIPER ASM;BRAKE;DH4P
1910425
1910680
$488,24 Unit Price incl. VAT
6
BRAKE PAD KIT
2201871
$49,13 Unit Price incl. VAT
7
SCREW
7512084
$2,09 Unit Price incl. VAT
8
Clamp Brake Line
5434041
Not Available
9
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
10
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
11
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
12
BRAKE RESERVOIR KIT; REAR
1930854
9999999
Not Available
13
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
14
HOSE-RESERVOIR HB
1910331
9999999
Not Available
15
BOLT
7512240
9999999
Not Available
16
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
17
MT PIVOT R.BRAKE BLK.
1012753067
Not Available
18
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
19
SCREW
7517386
$2,09 Unit Price incl. VAT
20
BRAKE RODHBPVTBLK
1012752067
Not Available
21
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
22
WASHER
7555919
$7,34 Unit Price incl. VAT
23
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
24
WASHER SPRING
7556090
9999999
Not Available
25
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
26
BRAKE MSTR CYL;FOOT;BANJO
1910311
1910791
$325,49 Unit Price incl. VAT
27
SCREW
7515158
$9,44 Unit Price incl. VAT
28
SEAL (10)
5410988
9999999
Not Available
29
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
30
LINE-BRAKE FT M/C TO RR SRS CH
1910516
9999999
Not Available
31
CLAMP RUBBER-COATED .562
7080573
$13,64 Unit Price incl. VAT
32
SCREW
7517386
$2,09 Unit Price incl. VAT

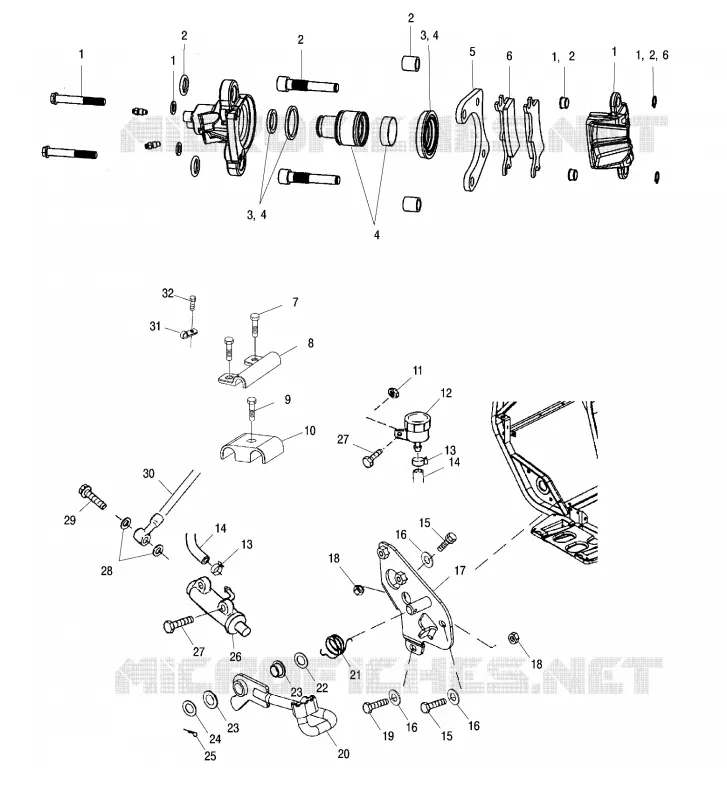

Find the detailed REAR BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
