1
Engine displacement
1000
2
Year
2020
3
Trim
RZR RS1
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS AND TAILLIGHTS
by
CYLINDER AND PISTON
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
INTAKE DUCT ASSEMBLY
1241185
$283,49 Unit Price incl. VAT
2
FILTER ASSEMBLY
1241084
$57,63 Unit Price incl. VAT
3
AIRBOX HOUSING ASSEMBLY
1241166
$173,24 Unit Price incl. VAT
4
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
5
AIRBOX COVER DECAL; ASSEMBLY
1241235
$230,99 Unit Price incl. VAT
6
ASM-AIRBOX CLIP
7082303
9999999
Not Available
7
AIRBOX SEAL
5814549
$68,24 Unit Price incl. VAT
8
DECAL-CAUT.AIR BOX
7182652
Not Available
9
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
10
3.75 SS
7080907
$20,99 Unit Price incl. VAT
11
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
12
HOSE-AIRBOX IN
5416218
9999999
Not Available
13
HOSE-VENT ENG
5416219
9999999
Not Available
14
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
15
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
16
ENGINE HOUSING INTAKE WELD
1241175
$272,99 Unit Price incl. VAT
17
COMPRESSION LIMITER
3022994
$14,69 Unit Price incl. VAT
18
THROTTLE BODY BOOT
5414570
$99,74 Unit Price incl. VAT
19
ISOLATOR
5415637
$5,24 Unit Price incl. VAT
20
WORM DRIVE CLAMP; .44 X 3.75
7080812
$36,74 Unit Price incl. VAT
21
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
22
HIGH INTAKE ASSEMBLY; GLOSS BLACK
2636774070
Not Available
23
INTAKE SUPPORT BRACKET; BLACK
5264914458
Not Available
24
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
25
SCR-HEXFLGHD M6X10 0600086
7517893
$7,34 Unit Price incl. VAT
26
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
27
BOLT
7519650
$7,34 Unit Price incl. VAT
28
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

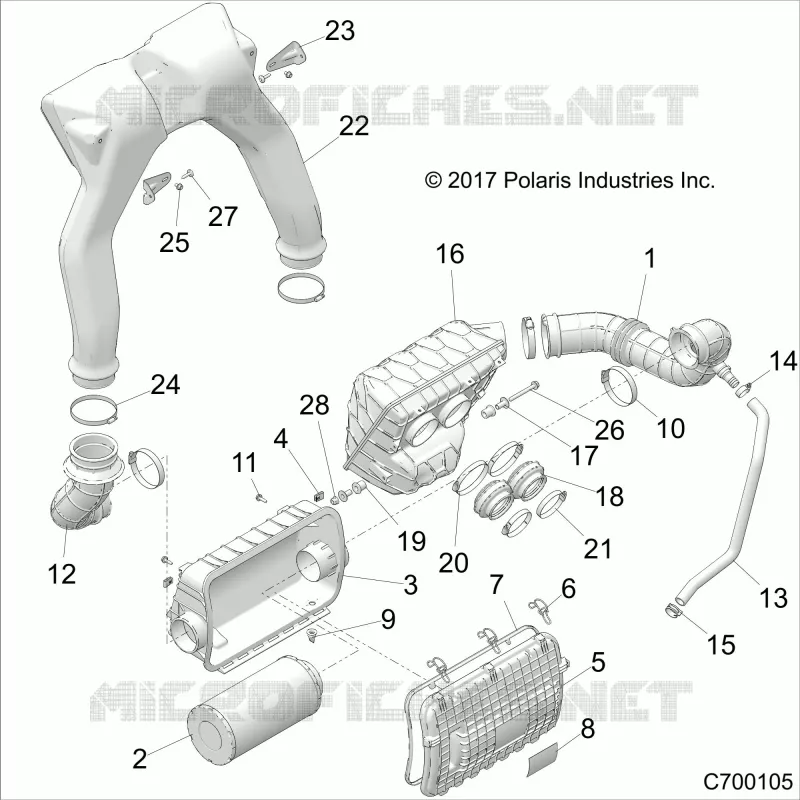

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
