HULL BODY HURRICANE B964466 AND INTL. HURRICANE I964466 (4935733573A005)
15
16
16
16
16
17
18
19
20
21
22
22
22
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
36
37
38
39
40
41
42
43
43
43
43
44
45
46
47
48
48
48
49
50
51
52
53
53
53
53
54
54
54
54
55
55
55
55
56
56
56
56
57
57
57
57
58
15
16
16
16
16
17
18
19
20
21
22
22
22
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
36
37
38
39
40
41
42
43
43
43
43
44
45
46
47
48
48
48
49
50
51
52
53
53
53
53
54
54
54
54
55
55
55
55
56
56
56
56
57
57
57
57
58
1
PLUNGER LATCH
5020753
9999999
Not Available
2
NUT HEX S.S.
7542454
9999999
Not Available
3
WASHER; LOCK; S.S.
7552607
9999999
Not Available
4
WASHER FLAT(10)
7555845
Not Available
5
HANDLE GRAB P.RED
5432251136
Not Available
6
PLUG R.BUMP P.RED
5431994136
Not Available
7
PLUG RIVET P.RED
5411105136
Not Available
8
BUMPER R.CTR P.RED
5432290136
Not Available
9
PAD R.BOARDING BLK
5830106070
Not Available
10
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
11
WASHER; LOCK; S.S.
7555838
9999999
Not Available
12
BOLT
7515127
9999999
Not Available
13
PAD LH R.FOOTWELL
5811275070
Not Available
14
FLANGE R.AIR-OUTLET
5432191
Not Available
15
RIVET (50)
7621491
9999999
Not Available
16
SUBSTITUTED BY 1060114
5431841
$52,80 Unit Price incl. VAT
16
ASM. CONTAINER FIRE EXTINGUISH
1060114
9999999
Not Available
17
SUBSTITUTED BY 1060114
5431842
$52,80 Unit Price incl. VAT
18
PLATE FIRE EXT.SS Substituted by 5244773
5211740
Not Available
19
BUCKET R.STORAGE
5432193
9999999
Not Available
20
WASHER;
5811440
9999999
Not Available
21
SCREW (10)
7515198
9999999
Not Available
22
BLOCK RH EXT BR.WHI.
5432461133
Not Available
22
BLOCK LH EXT.BR.WHI.
5432460133
Not Available
23
WASHER RUBBER(10)
7555870
9999999
Not Available
24
U-BOLT ASM.
1060126
9999999
Not Available
25
SCREW; S.S.
7511882
9999999
Not Available
26
ASM. PLUG BILGE
1060125
9999999
Not Available
27
DESC NOT_AVAILABLE
5432180
Not Available
28
GROMMET BULKHEAD
5411144
9999999
Not Available
29
BOLT SS.
7512045
9999999
Not Available
30
WASHER; FLAT; S.S.
7555837
9999999
Not Available
31
RECEIVERLATCHSS
5241936
9999999
Not Available
32
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT
33
WASHER LOCK
7552613
9999999
Not Available
34
SCREW S.S.(10)
7516805
9999999
Not Available
35
RIVET
7621452
9999999
Not Available
36
BRKT FUEL/WATER SEPARATOR
5241666
Not Available
37
BRKT GAS SPRING
5241653
9999999
Not Available
38
WASHER LOCK S.S.
7552610
9999999
Not Available
39
SEAL ENG.COVER
5521349
9999999
Not Available
40
NUT
7542334
$2,09 Unit Price incl. VAT
41
STUD BALL SWIVEL MT.
1500130
9999999
Not Available
42
BOLT S.S.(10)
7515125
9999999
Not Available
43
HINGE ASMFRONT
1060127
9999999
Not Available
43
HINGE TOP ENG.COVER Substituted by 1060127
5630627
Not Available
44
PIN W/GROOVE
5020870
9999999
Not Available
45
HINGE BASE DECK Substituted by 1060127
5630626
Not Available
46
GROMMET BOW EYE P.RED
5431950136
Not Available
47
NUT BOW EYE P.RED
5431951136
Not Available
48
RIVET(50)
7621511
9999999
Not Available
49
BUMPER FRONT P.RED
5411055136
Not Available
50
NUT NYLOK S.S.
7542133
9999999
Not Available
51
STRAP; BOW
2670150
9999999
Not Available
52
PLATE HINGE ENG.CVR. [No Longer Available]
5211644
Not Available
53
PAD RH F.FOOTWELL (RH)
5811278070
Not Available
53
PAD LH R.FOOTWELL (LH)
5811277070
Not Available
54
PAD LH SIDEDECK BLK
5811175070
Not Available
54
PAD RH SIDEDECK BLK
5811176070
Not Available
55
PAD LH ANTISKID FOOTWELL BLK (LH)
5830068070
Not Available
55
PAD RH ANTISKID FOOTWELL BLK
5830069070
Not Available
56
RUBRAIL LH SIDE P.RED
5521364136
Not Available
56
RUBRAIL RH SIDE P.RED
5521365136
Not Available
57
BUMPER LH REAR P.RED
5432249136
Not Available
57
BUMPER;RH;REAR;P.RED
5432250136
Not Available
58
PAD RH R.FOOTWELL (RH)
5811276070
Not Available

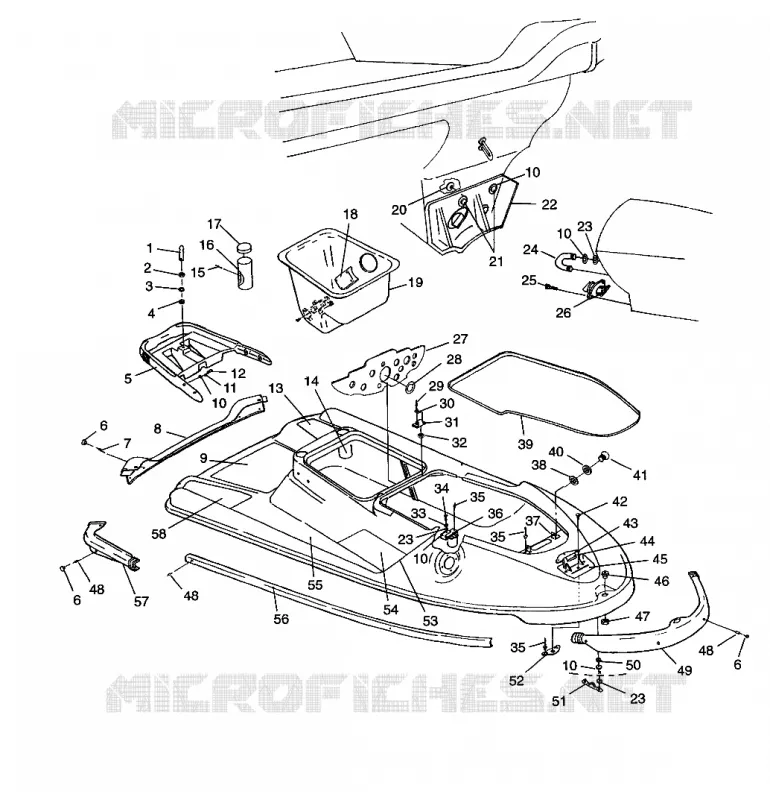

Find the detailed HULL BODY HURRICANE B964466 AND INTL. HURRICANE I964466 (4935733573A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

HURRICANE 700 1996
