BATTERY BOX ASM. for POLARIS 550 INDY / ES from 2016

BATTERY BOX ASM.

1

BATTERY SEALED NON SPILL RUSH 2

4013045

$215,24 Unit Price incl. VAT

2

CABLE; BLACK

4011546

$27,29 Unit Price incl. VAT

3

BATTERY BOLT KIT

2201357

$20,99 Unit Price incl. VAT

4

ASM-CABLE BATTERY/SOLENOID

2412523

2415010

$83,99 Unit Price incl. VAT

5

CABLE; RED; 1045 MM

4013289

$89,24 Unit Price incl. VAT

6

HEX NUT

7542105

$7,34 Unit Price incl. VAT

7

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

8

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

9

STUD PLATE ASSEMBLY

1017181

$18,89 Unit Price incl. VAT

10

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

11

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

12

INSUL.CABLE SOL.

5410346

9999999

Not Available

13

BATTERY STRAP; RUBBER

5410608

5419141

$16,58 Unit Price incl. VAT

14

HOOK- D

5224468

$17,84 Unit Price incl. VAT

15

BATTERY BOX WELD

1017182

$173,24 Unit Price incl. VAT

16

HEX FLANGE SCREW; 6 MM X 16 MM

7518548

$3,14 Unit Price incl. VAT

17

BATTERY BOX BRACKET ASSEMBLY; FRONT

1018527

$52,49 Unit Price incl. VAT

18

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

19

SHIELD-HEAT BATTERY

5253414

5262301

$52,49 Unit Price incl. VAT

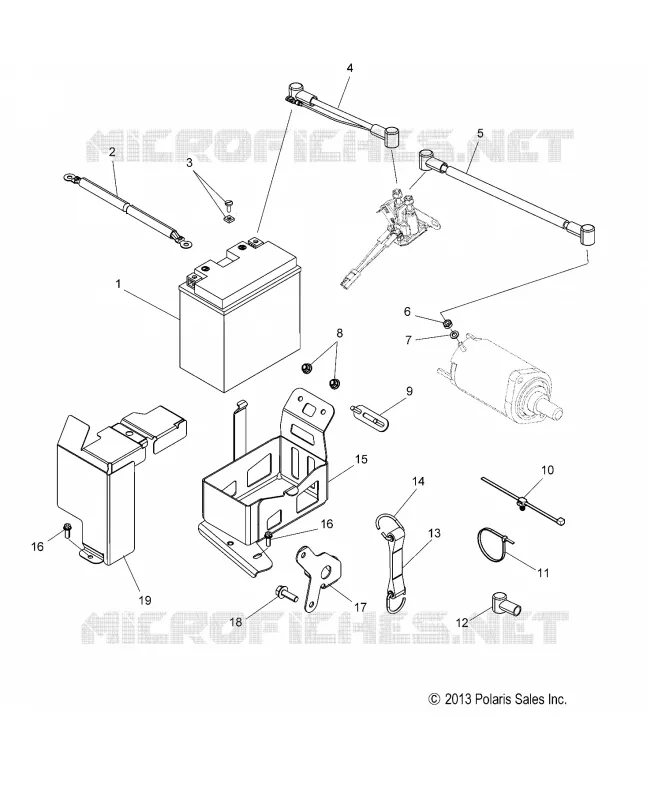

Find the detailed BATTERY BOX ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
