1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
TORSION BAR ASSEMBLY 600 XCR 0951676 (4929132913B004)
5
Parts Diagram
Parts Catalog
HOOD
by
COOLING SYSTEM 600 XCR 0951676 (4929132913B005)
TORSION BAR ASSEMBLY 600 XCR 0951676 (4929132913B004)
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
1
SCREW; SET
7512162
9999999
Not Available
2
BUSHING TORS.BAR SPT.MACH.
5130915
Not Available
3
TUBE HOUSING
5131063
Not Available
4
RIVET (50)
7621483
7621476
$2,09 Unit Price incl. VAT
5
BUSHING HOUSING
5431726
Not Available
6
BAR TORSION LR
6230080
9999999
Not Available
7
SCREW
7515433
$3,14 Unit Price incl. VAT
8
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
9
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
10
ARM TORSION BAR
5131010
Not Available
11
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
12
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
13
BOLT
7515425
7512404
$7,34 Unit Price incl. VAT
14
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
15
ROD END; RH
7060149
9999999
Not Available
16
BOLT
7515528
$15,74 Unit Price incl. VAT

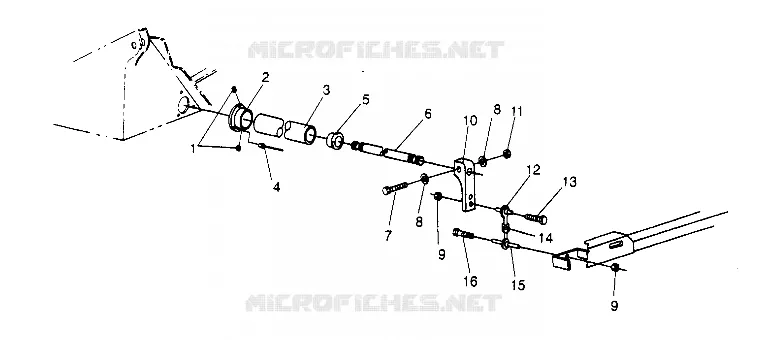

Find the detailed TORSION BAR ASSEMBLY 600 XCR 0951676 (4929132913B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
