PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A) for POLARIS 500 SP EFI - 0920674 from 1992

CYLINDER 500 SP/500 SKS (4921262126040A)

RECOIL STARTER 500 SP/500 SKS (4921262126042A)

PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A)

1

CRANKSHAFT ASM.

3084360

9999999

Not Available

2

CRANKSHAFT #1

3083362

Not Available

3

CRANKSHAFT 2

3083713

9999999

Not Available

4

CRANKSHAFT PTO

3084357

9999999

Not Available

5

CONNECTING ROD

3083252

9999999

Not Available

6

PIN; CRANK

3083233

9999999

Not Available

7

PIN CRANK 2

3083456

5141629

$57,74 Unit Price incl. VAT

8

CRANKPIN SPACER

3083277

9999999

Not Available

9

BEARING-LARGE END

3083255

9999999

Not Available

10

SPACER CRANKSHAFT

3080447

9999999

Not Available

11

BEARING BALL

3083480

3515063

$60,89 Unit Price incl. VAT

12

BALL BEARING C-4

3083714

9999999

Not Available

13

SET PISTON .020/.50MM O/S

3084341

9999999

Not Available

13

SET PISTON STANDARD

3084339

9999999

Not Available

13

SET PISTON .010 /.25MM O/S

3084340

9999999

Not Available

14

PISTON PIN

3083858

9999999

Not Available

15

RING PISTON; .020 IN

3084344

9999999

Not Available

15

PISTON RING STANDARD

3084342

9999999

Not Available

15

PISTON RING .010 IN

3084343

9999999

Not Available

16

PISTON PIN CLIP

3083839

9999999

Not Available

17

BEARING SMALL END

3083216

3515064

$25,71 Unit Price incl. VAT

18

NUT

3083093

7547895

$7,34 Unit Price incl. VAT

19

WASHER-SPRING(10)

3083094

7557228

$6,29 Unit Price incl. VAT

20

KEY

3081447

9999999

Not Available

21

GEAR DRIVE OIL PUMP

3083782

9999999

Not Available

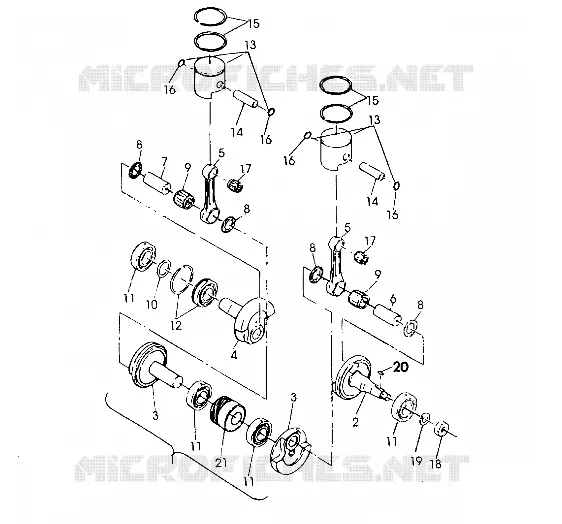

Find the detailed PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
