1
Engine displacement
500
2
Year
1992
3
Trim
500 SP EFI - 0920674
4
Parts Catalog
FRONT SUSPENSION AND SKI 500 SP/500 SKS (4921262126017A)
5
Parts Diagram
Parts Catalog
BATTERY BOX 500 SP/500 SKS (4921262126016A)
by
FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A)
FRONT SUSPENSION AND SKI 500 SP/500 SKS (4921262126017A)
1
SCREW
7512522
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
COMPRESSION SPRING
7041261067
Not Available
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCKFR.SUSPENSION
7041243
9999999
Not Available
8
SHOCK FR.SUSP.
7041144
9999999
Not Available
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
BOLT
7512404
$7,34 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
SLIDE (FR.SUSP.)
5410385
9999999
Not Available
12
SLIDE-SWAYBAR
5410384
9999999
Not Available
13
SCREW
7515433
$3,14 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARMTRLGLHBLK.
1822053067
Not Available
18
ARMTRLGRHBLK.
1822052067
Not Available
19
STOP STRNG RH BLK.
5220238067
Not Available
19
STOP STRNG LH BLK.
5220237067
Not Available
20
STEERING ARM
5220326067
Not Available
21
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
RIVET
7621433
$2,09 Unit Price incl. VAT
24
SPINDLE BLK.
6230055067
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
9999999
Not Available
28
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
29
SCREW
7515462
9999999
Not Available
30
DECAL(25.0##)TOP BLUE [No Longer Available] (500 & 500 Classic Only)
7072649
Not Available
30
DECAL STRIPE (SP) [No Longer Available] (SP)
7073346
Not Available
31
SKI
1820265
9999999
Not Available
32
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
33
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD RADIUS (BLK.)LOW (500 Special Only)
1822055067
Not Available
34
ROD RADIUS BLACK
1822045067
Not Available
35
ROD RADIUS BLACK
1822037067
Not Available
35
ROD RADIUS(BLK.)
1822054067
Not Available
36
NUT JAM(10)
7542520
9999999
Not Available
37
ROD END RH
7060126
9999999
Not Available
38
STRAP-SPACER
5220178
9999999
Not Available
39
NUT FLEXLOCK
7542503
9999999
Not Available
40
BRACE PAN
5223997067
Not Available
41
NUT FLEXOC;
7542703
9999999
Not Available
42
ROD END
7060127
9999999
Not Available
43
STRAP-SPACER BOTTOM
5220227
9999999
Not Available
44
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
45
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
46
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
BAR SWAY BLACK
5224237067
Not Available
48
BAR; SWAY; (BLK.)
5224240067
Not Available
49
BUSHING-SWAYBAR
5410383
9999999
Not Available
49
SWAY BAR BUSHING
5410386
9999999
Not Available
50
DECAL IFS [No Longer Available]
7073182
Not Available

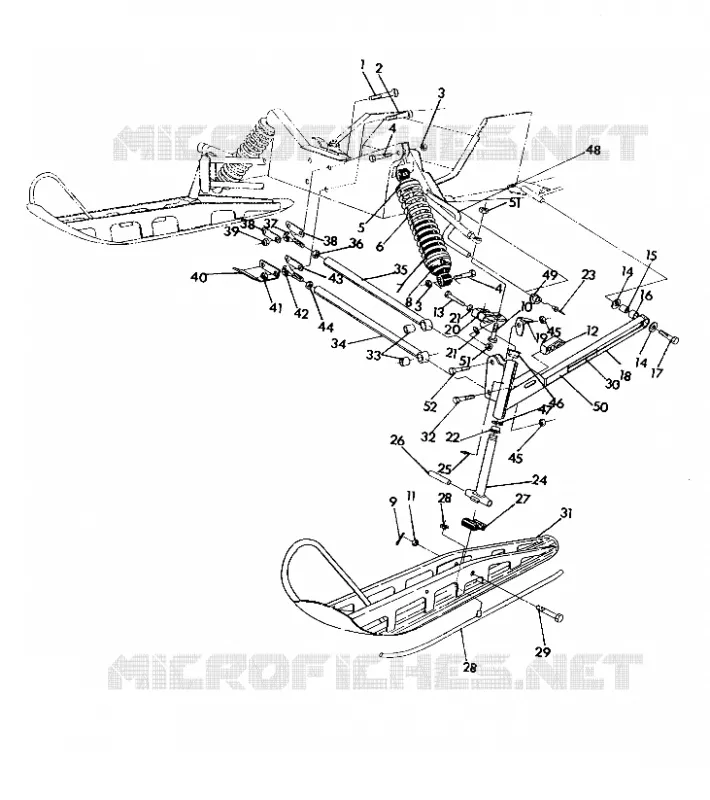

Find the detailed FRONT SUSPENSION AND SKI 500 SP/500 SKS (4921262126017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
