1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ
4
Parts Catalog
ENGINE, OIL SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
BODY, PASSENGER SEAT BOTTOM
ENGINE, OIL SYSTEM
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
1
2
2
2
2
2
3
3
4
5
6
7
8
8
8
9
10
11
12
13
1
BREATHER LINE; 122 CM; SLIT
5413001
8450073-600
$136,49 Unit Price incl. VAT
2
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
3
OIL TANK DIPSTICK
5434574
9999999
Not Available
4
LINE BREATHER 3/8 ID.
8450073600
Not Available
5
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
6
LINE-FUEL GOODYEAR;1/2 SAE 30R7-100
8450096100
Not Available
7
SCREW
7512024
$9,44 Unit Price incl. VAT
8
CLAMP HOSE NYLON (10)
7080693
$10,49 Unit Price incl. VAT
9
SPRING HOSE CLAMP; .81
7081026
$14,69 Unit Price incl. VAT
10
OIL FILTER SCREEN
7052326
9999999
Not Available
11
GROMMET
5412507
$12,59 Unit Price incl. VAT
12
BUSHING MTG.
5333204
9999999
Not Available
13
GROMMET MTG RESERVOIR (10)
5410828
9999999
Not Available
14
SCREW
7512242
$4,19 Unit Price incl. VAT
15
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
16
PLUG
7051524
$62,99 Unit Price incl. VAT
17
WASHER
5850135
$5,76 Unit Price incl. VAT
18
OIL TANK WELDMENT
1261653
$509,24 Unit Price incl. VAT

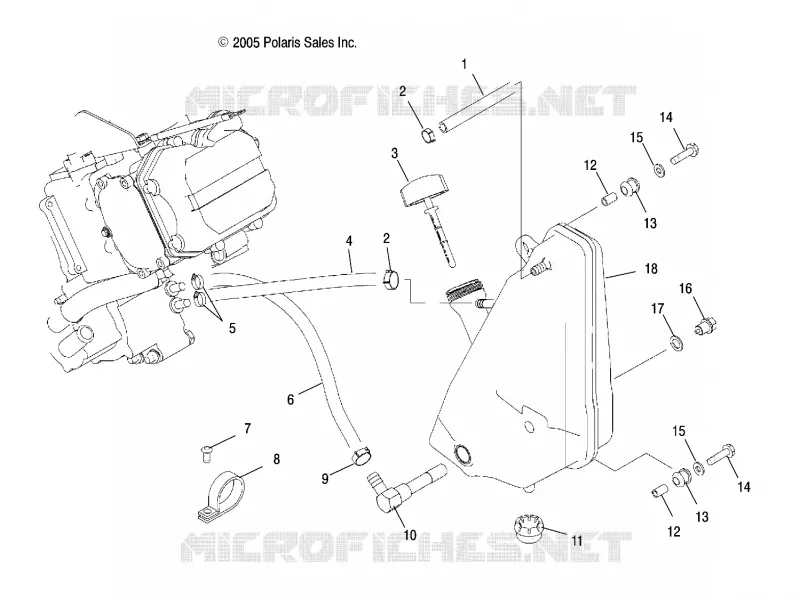

Find the detailed ENGINE, OIL SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
