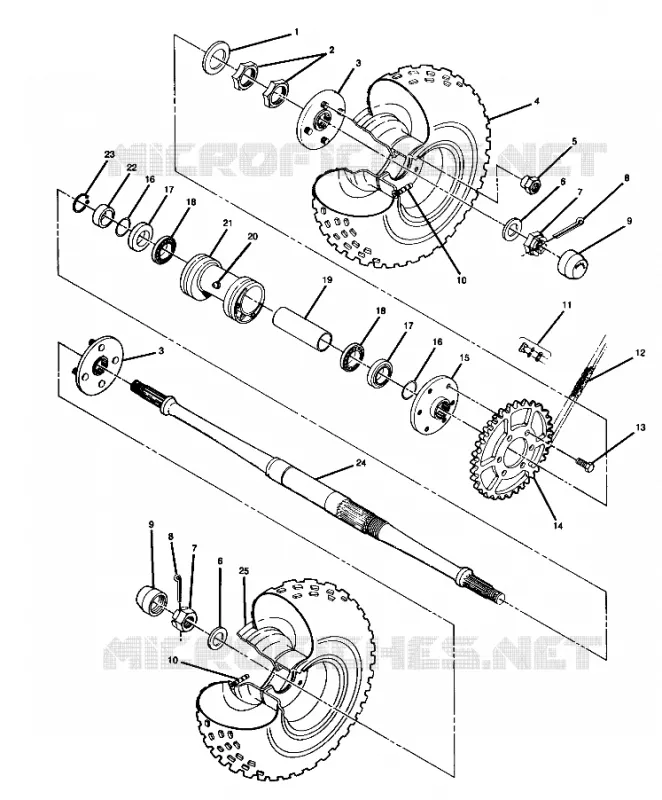

Find the detailed REAR WHEEL DRIVE ASSEMBLY (4914781478017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
TRAIL BOSS 250 - X888528
Model : TRAIL BOSS 250
Engine capacity : 250
Year : 1988
