DRIVE TRAIN, MAIN GEARCASE INTERNALS
-
1
2
3
4
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
23
23
24
24
24
25
26
26
27
28
29
30
30
31
31
32
33
33
34
34
34
35
36
37
37
38
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
74
75
76
77
78
79
80
81
82
83
84
85
86
86
87
88
89
-
GEARCASE ASSEMBLY; MUD
1334235
$7 297,49 Unit Price incl. VAT
1
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
SCREW
3235206
$13,64 Unit Price incl. VAT
5
SCREW
3235207
$19,94 Unit Price incl. VAT
6
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
7
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
8
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
9
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
10
WASHER
3235211
$19,94 Unit Price incl. VAT
11
WASHER
3235212
$25,19 Unit Price incl. VAT
12
WASHER 22.7 X 32 X 1.5
3235991
$19,94 Unit Price incl. VAT
13
WASHER 22.5 X 30 X 1.5
3236410
$14,69 Unit Price incl. VAT
14
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
15
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
16
SNAP RING
7710434
$7,34 Unit Price incl. VAT
17
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
18
SNAP RING
3233106
$10,49 Unit Price incl. VAT
19
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
20
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
21
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
22
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
23
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
24
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
25
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
26
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
27
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
28
SPACER; 19.4 X 34.0 X 2
3235883
$41,99 Unit Price incl. VAT
29
INPUT SHAFT SHIM
3236234
$99,74 Unit Price incl. VAT
30
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
31
BEARING
3233019
$54,59 Unit Price incl. VAT
32
BEARING
3233020
$80,84 Unit Price incl. VAT
33
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
34
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
35
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
36
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
37
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
38
BALL BEARING; 17 X 30 X 7
3235807
$60,89 Unit Price incl. VAT
39
BALL BEARING
3236118
$54,59 Unit Price incl. VAT
40
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
41
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
42
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
43
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
44
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
45
COVER-SECTOR GEARS;MACH
3235809
$73,49 Unit Price incl. VAT
46
SNORKLE TUBE; MACHINED
3236120
$309,74 Unit Price incl. VAT
47
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
48
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
49
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
50
DETENT STAR
3235982
$68,24 Unit Price incl. VAT
51
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
52
REVERSE SHAFT 25T
3235451
$272,99 Unit Price incl. VAT
53
OUTPUT SHAFT; FRONT
3236411
$246,74 Unit Price incl. VAT
54
BELLCRANK; ZEUS
3236238
$68,24 Unit Price incl. VAT
55
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
56
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
57
LOW GEAR; 67 TOOTH
3235232
$230,99 Unit Price incl. VAT
58
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
59
GEAR; 53 TOOTH
3235234
$157,49 Unit Price incl. VAT
60
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
61
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
62
GEAR; 48 TOOTH
3235450
$246,74 Unit Price incl. VAT
63
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
64
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
65
GEAR; LOW; 25 TOOTH
3236132
$120,74 Unit Price incl. VAT
66
PARK CAM
3235983
$283,49 Unit Price incl. VAT
67
SHIFT DRUM; MACHINED
3235984
$519,74 Unit Price incl. VAT
68
REVERSE GEAR; 56 TOOTH
3235985
$188,99 Unit Price incl. VAT
69
IDLER GEAR; 39T
3235986
$209,99 Unit Price incl. VAT
70
SNORKEL GEAR; 13 TOOTH
3236412
$272,99 Unit Price incl. VAT
71
MOUNT BRACKET WELD; REAR
3236342
$68,24 Unit Price incl. VAT
72
OUTPUT GEAR SUBASSEMBLY
3235335
$645,74 Unit Price incl. VAT
73
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
74
SHIFT FORK SUBASSEMBLY
3235920
$136,49 Unit Price incl. VAT
75
PINION SHAFT; 11 TOOTH
3236140
$545,99 Unit Price incl. VAT
76
CASE ASSEMBLY; RIGHT
3236297
$750,74 Unit Price incl. VAT
77
SUBASSEMBLY INPUT SHAFT
3236320
$351,74 Unit Price incl. VAT
78
SUBASSY LH CASE
3236413
$787,49 Unit Price incl. VAT
79
CENTER DRIVE BEARING COVER
3235241
$89,24 Unit Price incl. VAT
80
MOUNT BRACKET; REAR
3236343
$68,24 Unit Price incl. VAT
81
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
82
RESISTIVE 2 PIN ROTARY SWITCH
7662299
$209,99 Unit Price incl. VAT
83
O-RING
3234302
$13,64 Unit Price incl. VAT
84
O-RING
3233836
$12,59 Unit Price incl. VAT
85
O-RING
3233828
$12,59 Unit Price incl. VAT
86
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
87
SEAL; TRIPLE LIP; 25 X 55 X 8
3236135
$104,99 Unit Price incl. VAT
88
O-RING; 2.989 X .070
3236136
$17,84 Unit Price incl. VAT
89
VITRON TRIPLE LIP SEAL; 32 X 49 X 8
3236141
$110,24 Unit Price incl. VAT

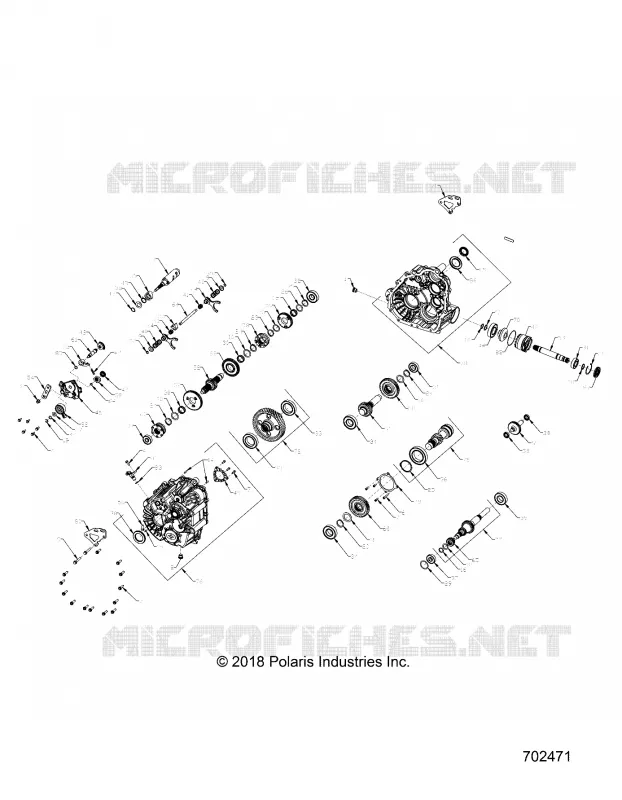

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RANGER 1000 XP EPS MUD 1000 2019
