ENGINE, CYLINDER HEAD, CAM AND VALVES
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
EXHAUST
ENGINE, CYLINDER HEAD, CAM AND VALVES
1
1
2
3
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
14
22
1
CYLINDER HEAD ASSEMBLY; MACHINED
3022549
3024638
$1 730,39 Unit Price incl. VAT
1
PLUG-PIPE M20X10
7052532
$52,49 Unit Price incl. VAT
2
CAMSHAFT-850/1000XP
3024064
$734,99 Unit Price incl. VAT
3
EXHAUST VALVE; 28 MM
3022589
3024724
Not Available
4
ROCKER ARM ASSEMBLY; EXH; IC
1204589
3024616
Not Available
4
ASM-ROCKER ARM;EXH;IC
3024037
3024616
Not Available
5
ASM-ROCKER SHAFT
3024201
$125,99 Unit Price incl. VAT
6
INTAKE VALVE; 33 MM
3022203
3024723
Not Available
7
ASM-ROCKER ARM;INT;IC
3024036
$178,49 Unit Price incl. VAT
7
ROCKER ARM ASSEMBLY
1204588
3024036
$178,49 Unit Price incl. VAT
8
RETAINER-VALVE
3021865
$9,44 Unit Price incl. VAT
9
VALVE SEAL
3610165
3024534
$14,69 Unit Price incl. VAT
10
SPRING-VALVE
7045875
$52,49 Unit Price incl. VAT
11
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
12
SCR-M8X1.25X75 HXFL
7519293
$13,64 Unit Price incl. VAT
13
SCR-LASH ADJUSTER;SWIVEL
5142377
$15,74 Unit Price incl. VAT
14
WRENCH-8MMX10MM OPEN END
Not Available
15
OIL JET; OIL PUMP
2540080
$17,84 Unit Price incl. VAT
16
CYLINDER HEAD GASKET; 1000 XP
5813933
$110,24 Unit Price incl. VAT
17
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
18
BOLT
7519219
$18,89 Unit Price incl. VAT
19
TWIN VALVE GUIDE; 5.5 MM; ATV
3022348
$16,79 Unit Price incl. VAT
20
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
21
WRENCH-8MMX10MM OPEN END
Not Available
22
STUD-M8X1.25X45
7520724
$9,44 Unit Price incl. VAT

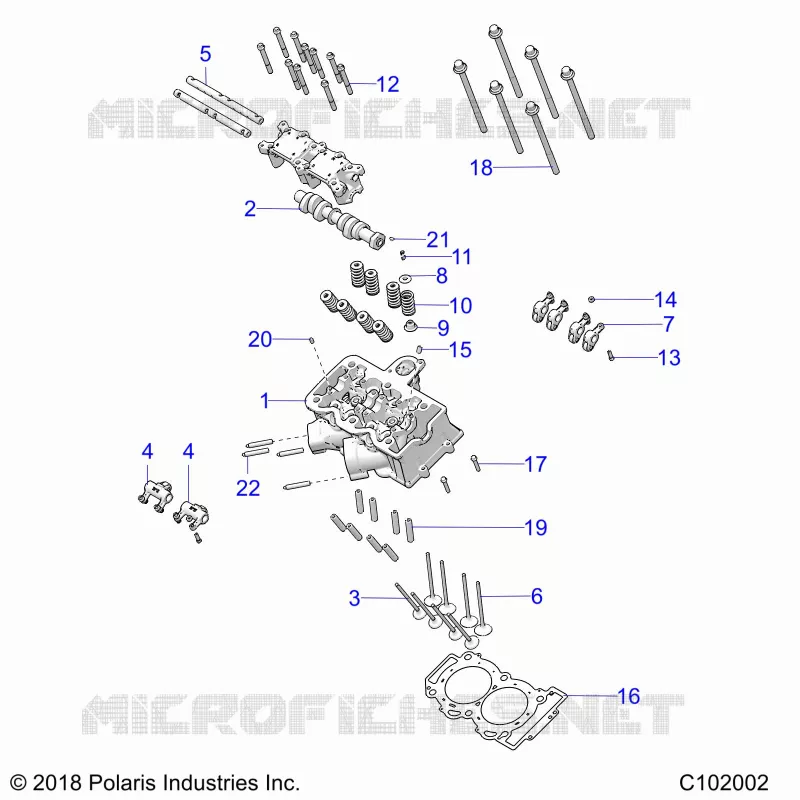

Find the detailed ENGINE, CYLINDER HEAD, CAM AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
