1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 EFI UTE
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
HEADLIGHTS
DRIVE TRAIN, SECONDARY CLUTCH
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
EBS DRIVEN CLUTCH ASSEMBLY
1323248
$1 060,49 Unit Price incl. VAT
2
WASHER .906 X 1.38 X .060 IN
7556120
$2,09 Unit Price incl. VAT
2
WASHER .906 X 1.38 X .030 IN
7556454
$8,39 Unit Price incl. VAT
2
BUSHING-.906 X 1 3/8 X 7 GA-Y
7556813
$9,44 Unit Price incl. VAT
3
DOMED WASHER; SMALL
5250562
$4,19 Unit Price incl. VAT
4
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
5
BOLT
7515327
$10,49 Unit Price incl. VAT
6
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
7
ORV DRIVE BELT; FOR EBS CLUTCH
3211113
$128,09 Unit Price incl. VAT
8
RETAINER-SPRING INNER (2 TAB)
7710564
2206554
$115,49 Unit Price incl. VAT
9
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
10
ASM-CAM
3234356
$734,99 Unit Price incl. VAT
11
SCREW-HELIX; PATCH
3234754
$10,49 Unit Price incl. VAT
12
EXTERNAL RETAINING RING; 1.500
7710522
$25,19 Unit Price incl. VAT
13
CLUTCH ROLLER
3234207
$89,24 Unit Price incl. VAT
14
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
15
COMPRESSION SPRING; RED
3234452
$173,24 Unit Price incl. VAT
16
ROLLER PIN
3234201
$31,49 Unit Price incl. VAT
17
CLUTCH ROLLER
3234197
$89,24 Unit Price incl. VAT
18
SLOTTED SPRING PIN; .125 X .625
3234202
$7,34 Unit Price incl. VAT
19
ANGULAR CONTACT BALL BEARING
3234203
$40,94 Unit Price incl. VAT
20
SPIDER-DRIVEN TIED DAMPED
5139593
$141,74 Unit Price incl. VAT
21
SPIDER DAMPENER INSERT; FORGED
5139594
$89,24 Unit Price incl. VAT

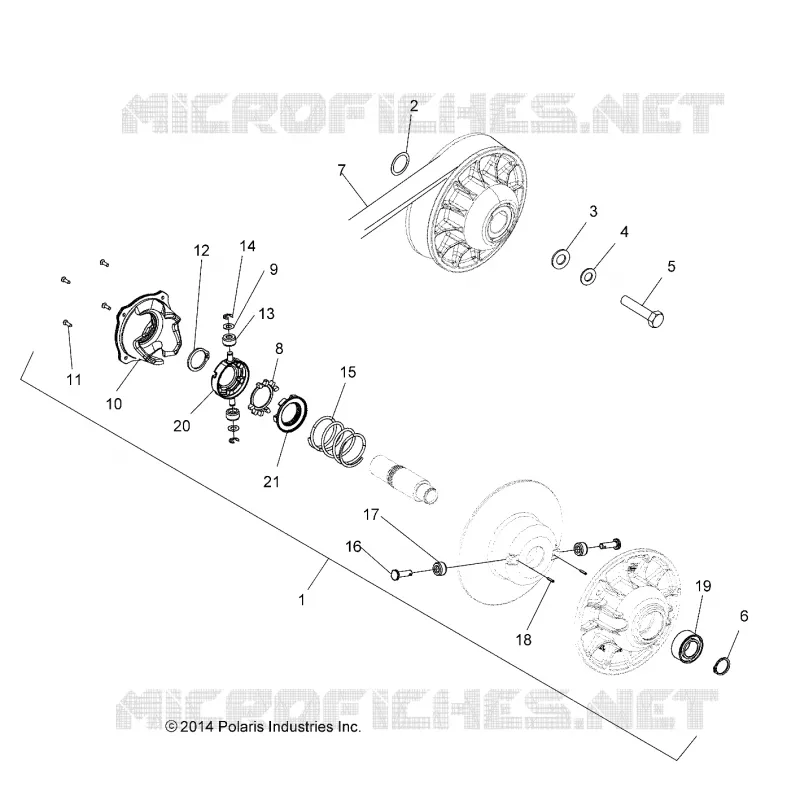

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
