CRANKSHAFT ASSEMBLY
3023169
3023103
$1 900,49 Unit Price incl. VAT
1
CRANKSHAFT ASSEMBLY
3023103
$1 900,49 Unit Price incl. VAT
1
CRANKSHAFT ASSEMBLY; MACHINED
3023700
3023103
$1 900,49 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1204835
$677,24 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
3023077
3024568
$157,49 Unit Price incl. VAT
4
BOLT FLANGE MJ9 X 1 X 40
7520378
$10,49 Unit Price incl. VAT
5
MAIN GEARCASE; 41 MM; GREEN
3514662003
Not Available
5
MAIN BEARING; 41 MM; BLUE
3514662002
Not Available
5
MAIN BEARING; 41 MM; WHITE
3514662001
Not Available
5
MAIN BEARING; RED
3514662005
Not Available
5
MAIN BEARING; 41 MM; YELLOW
3514662004
Not Available
6
CON ROD BEARING; 41 MM; GREEN
3514663003
Not Available
6
CONNECTING ROD BEARING; 41MM; WHITE
3514663001
Not Available
6
BEARING-CON ROD; G-90; 41MM; YELLOW
3514663004
Not Available
6
CONNECTING ROD BEARING; 41 MM; BLUE
3514663002
Not Available
7
BALL SHAFT BEARING; 38 X 41 X 17.5
3514756
$16,79 Unit Price incl. VAT
8
MAIN BEARING; CENTER; LOWER
3514803004
Not Available
8
MAIN BEARING; CENTER; LOWER; BLUE
3514803002
Not Available
8
MAIN BEARING; CENTER; LOWER; GREEN
3514803003
Not Available
9
CRANKSHAFT SEAL
3610284
3610419
Not Available
10
SCREW
7519186
$10,49 Unit Price incl. VAT
11
SCREW
7519297
$7,34 Unit Price incl. VAT
12
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
13
CRANKCASE KIT
2207373
$2 320,49 Unit Price incl. VAT
14
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
15
OIL DRAIN DIVERTER
5452616
$47,24 Unit Price incl. VAT
16
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
17
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
18
BOLT
7520979
7521267
$25,19 Unit Price incl. VAT
19
PLUG-HEX SCKT;W/O-RING;M16X1.5
7052642
$13,64 Unit Price incl. VAT
20
SUMP COVER
5137873
5143719
$204,74 Unit Price incl. VAT
21
PLUG-HEX SCKT;W/O-RING;M20X1.5
7052643
$14,69 Unit Price incl. VAT
22
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
23
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
24
SCREW
7519154
$13,64 Unit Price incl. VAT
25
ENGINE GEARCASE COUPLER
5137795
5143718
$272,99 Unit Price incl. VAT
26
PISTON JET
3022856
$83,99 Unit Price incl. VAT
27
BOLT-M10X1.5X60MM8.8HEXDRILOCK
7520467
$9,44 Unit Price incl. VAT

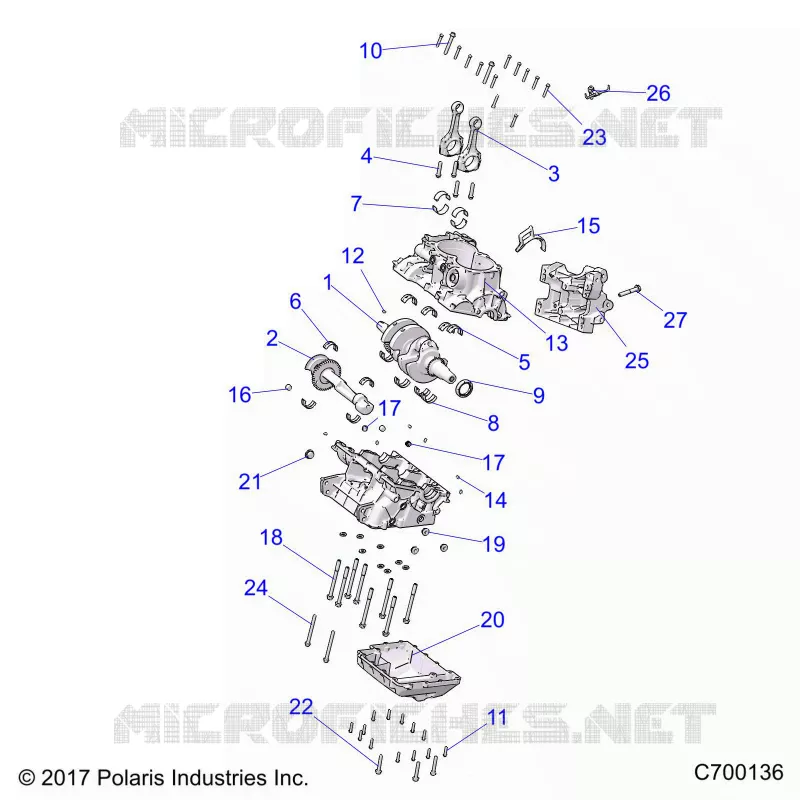

Find the detailed ENGINE, CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
