1
RAIL ASM RH 133##(LITE GT) Substituted by 1541120 (Incl. 59 64-66 71-72)
1540692
Not Available
1
RAIL ASM LH 133##(LITE GT) Substituted by 1541119 (Incl. 59 64-66 71-72)
1540691
Not Available
2
SPACER INNER IDLER
5010169
9999999
Not Available
3
WHEEL; IDLER
1594021
9999999
Not Available
4
SPACER IDLER R.INNER
5333086
9999999
Not Available
5
SHAFT REAR IDLER
5020395
9999999
Not Available
6
BUSHING
7556301
$6,29 Unit Price incl. VAT
7
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
8
ADJUSTER BOLT
7515455
9999999
Not Available
9
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
10
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
11
SPACER-IDLER-OUTER
5332641
9999999
Not Available
12
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
13
WASHER FLAT
7555732
9999999
Not Available
14
RIVET
7621501
$4,19 Unit Price incl. VAT
15
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
16
WASHER
7555804
$7,34 Unit Price incl. VAT
17
SPACER
5332786
$13,64 Unit Price incl. VAT
18
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
19
BOLT
7512659
9999999
Not Available
20
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
21
BOLT
7512404
$7,34 Unit Price incl. VAT
22
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
23
RIVET
7621476
$2,09 Unit Price incl. VAT
24
REINF.; BUMPER
5222629
9999999
Not Available
25
BUMPER; RAIL
5810554
9999999
Not Available
26
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
27
SCREW
7512227
$6,29 Unit Price incl. VAT
28
SLIDER BLK.
5521296
9999999
Not Available
29
COVER-RAIL TIP
5430627
9999999
Not Available
30
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
31
TRACK
5410615
5410727
Not Available
32
SHAFT-PIVOT ARM
5020415
9999999
Not Available
33
NUT LOCK
7542403
9999999
Not Available
34
SPACER OUTER
5332784
9999999
Not Available
35
TUBE; SUSPENSION
5332783
9999999
Not Available
36
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
37
SPACER
5332787
9999999
Not Available
38
ROLLER-SPRING
5430540
9999999
Not Available
39
WASHER
7555743
9999999
Not Available
40
SCREW
7515433
$3,14 Unit Price incl. VAT
41
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
42
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
43
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT

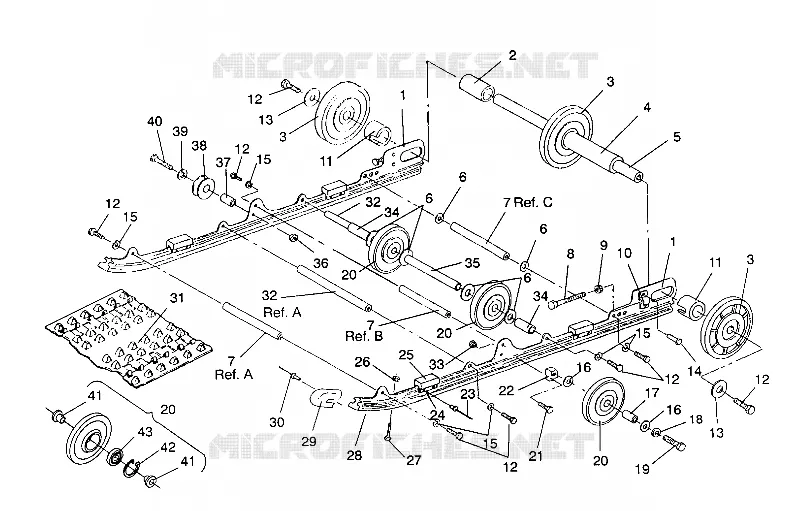

Find the detailed SUSPENSION ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323016A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
