1
Engine displacement
700
2
Year
1998
3
Trim
700 RMK - 0980966
4
Parts Catalog
CRANKCASE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C006)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C001)
by
CYLINDER 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C007)
CRANKCASE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C006)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
1
SCREW
7516821
9999999
Not Available
2
PLATESTOPTORQUE
5131319
9999999
Not Available
3
STUD CYL.FLANGE 152MM SPS
5131677
9999999
Not Available
4
CHECK VALVE; 90 DEG
7051020
$68,24 Unit Price incl. VAT
5
KIT CRANKCASE ASM TWN(SNO)
2201135
9999999
Not Available
6
O-RING
5411125
9999999
Not Available
7
MANIFOLD WATER INLET
5630610
9999999
Not Available
8
RETAINER WATER IN.MANIF. Substituted by 5243431
5241568
Not Available
9
SCREW
7516736
9999999
Not Available
10
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
11
HOSE
845006804
Not Available
12
FLANGED SEAL
5411394
5415026
$41,99 Unit Price incl. VAT
13
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
14
PLUG
7051529
9999999
Not Available
15
SCREW
7516919
9999999
Not Available
16
SCREW
7516732
$3,14 Unit Price incl. VAT
17
RING RETAINING
7710441
9999999
Not Available
18
OIL LINE-3MMX7MM;26CM
845006126
Not Available
19
CLAMP
7080603
$3,14 Unit Price incl. VAT
20
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
21
VALVE CHECK
7052160
9999999
Not Available
22
SCREW
7517319
9999999
Not Available

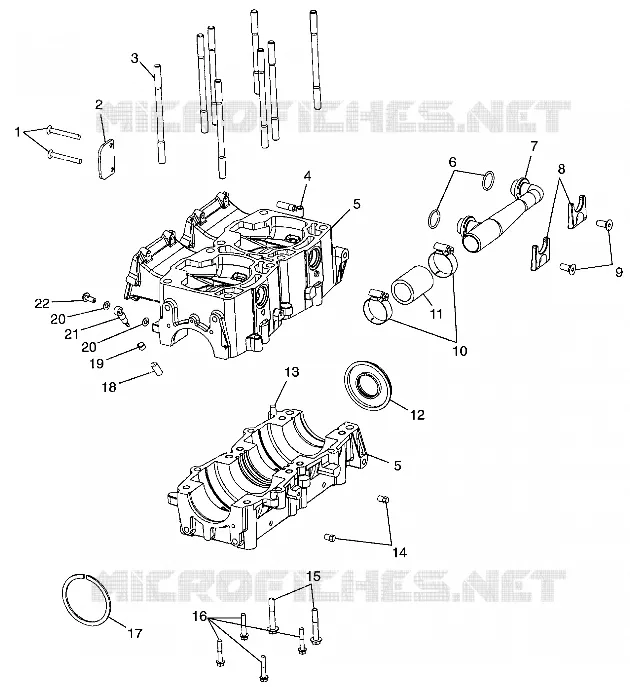

Find the detailed CRANKCASE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
