HOOD ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303005A) for POLARIS STORM SKS

NOSEPAN Storm/0932770 and Storm SKS/0932570 (4923032303004A)

HOOD

TACHOMETER; 6 PULSE

3280127

9999999

Not Available

KNOB TRIP ODOMETER

3280103

9999999

Not Available

SPEEDO;(120 MPH.)

3280138

3280188

Not Available

BRACKET (SPORT)

3280098

Not Available

NUT

3280063

Not Available

TAPE FOIL (Not Shown)

5810840

Not Available

CABLE SPEEDO W/FOIL

3280143

9999999

Not Available

INDICATOR-TEMP-WARN.

4040011

9999999

Not Available

INDICATOR OIL/BRK WARN.

4040034

9999999

Not Available

INDICATOR HI-BEAM WARN.

4040013

9999999

Not Available

INDICATOR ACC WARN.

4040014

9999999

Not Available

SCREW SCKT.HD.CAP

7512008

9999999

Not Available

BEZEL INST.

5430924

Not Available

HEADLIGHT BULB

2870448

$36,74 Unit Price incl. VAT

RETAINER H/L BULB

4032063

9999999

Not Available

HEADLIGHT ASM.

4032040

9999999

Not Available

PAD W/S RH BLACK

5810438

9999999

Not Available

PADW/SLHBLACK

5810437

9999999

Not Available

WINDSHIELD LOW BLK. (Storm)

5431447

Not Available

WINDSHIELD; SMOKE

5431144

9999999

Not Available

RIVET (PLASTIC LOK)(50)

7621505

7621509

$2,09 Unit Price incl. VAT

SCREW; ADJ.(10)

4032003

9999999

Not Available

HSG INST TOP BLK

5430923070

Not Available

SPRING-ADJ

4032002

9999999

Not Available

NUT SPEED

7670056

9999999

Not Available

HSG INST.BOTT.BLK.

5430922070

Not Available

SCREW

7512009

9999999

Not Available

SPEED NUT

7670057

$2,09 Unit Price incl. VAT

SCREW SEMS

7512283

$7,34 Unit Price incl. VAT

SCREW

7511840

9999999

Not Available

O RING(HEAVY)

5410387

5410970

$2,09 Unit Price incl. VAT

HOOD LIQ.BLK.METALLIC Substituted by 2631574-177 (Incl. Foam & Foil)

5431194177

Not Available

CABLE; HOOD RETAINER

7080495

9999999

Not Available

SHIELD HEAT CTR.HD. Substituted by 5240352-029

5222985029

Not Available

SCREW

7511861

9999999

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

WASHER WROUGHT

7558302

$3,14 Unit Price incl. VAT

SPRING HOOD CABLE

7041202

9999999

Not Available

CLAMP RETAINER

7080372

$7,34 Unit Price incl. VAT

PLATE RE-INF. (HD.)

5222105

9999999

Not Available

SCREW

7511989

9999999

Not Available

HINGE ASMHDBLK

2635005067

Not Available

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

BOLT-CARRIAGE

7512263

9999999

Not Available

FLEXLOC NUT

7542103

$10,49 Unit Price incl. VAT

HOOD LATCH CUP

5430733

9999999

Not Available

RIVET

7621334

$2,09 Unit Price incl. VAT

SEAL INTAKE

5810597

9999999

Not Available

PANEL INTAKE BLK.METAL. Substituted by 2620078-177

5431195177

Not Available

DECAL DASH WARNING [No Longer Available]

7072870

Not Available

HARNESS HEADLIGHT

2460382

Not Available

HOUSING

4020052

9999999

Not Available

HOUSING

4020115

9999999

Not Available

HOUSING

4020114

9999999

Not Available

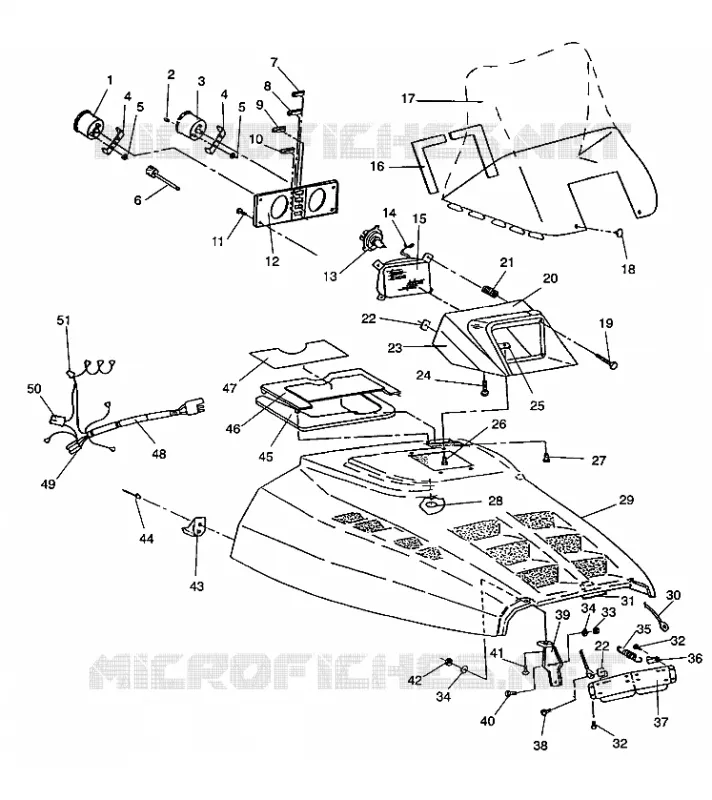

Find the detailed HOOD ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303005A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
